| Operation Mode | ON-OFF |
| Current Rating | 18 Amps |
| Operating Voltage | 12 Volts |
| Contact Type | Normally Open |
| Connector Type | Crimp, Plug In |
| Brand | ABILKEEN |
|
MOQ |
100 |
About this item
Rated current 18 Amps; LED voltage: 3-6V,12-24V,110V/120V AC/DC, Hole size required:3/4" / 0.74" / 19mm, Momentary Push Button Switch: Push and Hold-ON, Release-OFF.
ABILKEEN Push Button Switch CE Certification. Brass nickel/Stainless Steel 304 material & IP67 waterproof protection can be used in wet or dusty enviroment. Maximum voltage: 250V AC, minimum voltage: 5V DC.
Depressed button turns LED light on: The black wire is connected to the power supply "-", one green wire is connected to the power supply "+" input,, and the other green and red wires are connected to the device output.
4.8 mm wide X 0.8 mm thickness Terminal Pin for High Current Use; LED can be on all the time:Two green wires connect the device input and output, and the red and black wires (LED polarity free) connect to the power supply.
Product Description
What's Momentary Switch:
Momentary switch, Push and Hold-ON, Release-OFF.
What is a high current switch
Heating current :18A
Rated insulation voltage: 250VAC
Rated current (Resistive Load: 18A)
(Inductive Load :5A)
What's the Wire Connector
wire connector: 4* 1.5mm² Green wire （NO）
1* 0.3mm² Red wire (LED +)
1* 0.3mm² Black wire (LED -)
With the wire connector, you don't need to solder the terminals, make installing very easy Saves the issue of soldering to the switch.
Because this is a thick 1.5mm² wire, it can withstand 15A current.
What's Switch Used for
Great for electromagnetic starter, relay, Doorbell, Horn Button Switch, PC Power Switch or any circuit controls
What's Note
-These switches come with a rubber O-ring which makes the head of the button is waterproof grad
|
Product Name |
19mm 3/4" Push Button Switch |
|
Model |
IB19K3-P10-P |
|
Mounting Hole |
19mm |
|
Operation Type |
Momentary/Latching |
|
Switch Combination |
1NO |
|
Head Type |
Flat /High/Domed round head |
|
Terminal type |
4 Pin Terminals |
|
Enclosure Material |
Brass nickel/Stainless steel |
|
LED Color |
Red/Yellow/Blue/Green/White |
|
LED Voltage |
3-6V / 12-24V/ 48V/110-220V |
|
Delivery Days |
1-7 days |
|
Contact Resistance |
50 mΩ max |
|
Insulation Resistance |
1000MΩ Min |
|
Dielectric Intensity |
2000VAC |
|
Operating Temperature |
-20°C ~+55°C |
|
Wire Soldering |
Acceptable and with fast shipping |
|
Accessories |
Nut |
|
What You Get |

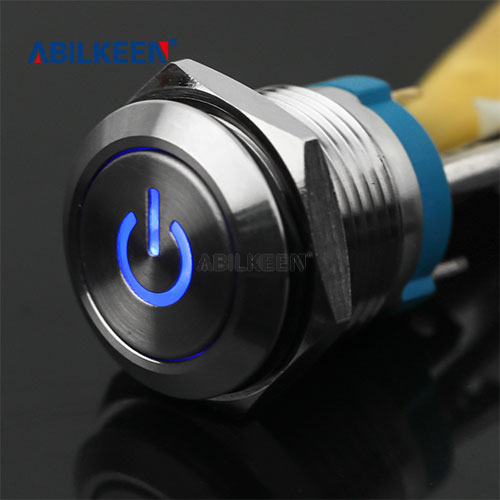

1 x Push Button Switch,19mm, With Power logo illuminated |
LED Illumination
IP68 Rated
Impact Resistant
High Temperature Resistant
