Think about the last time you operated a piece of equipment with a poorly designed control panel. Buttons that felt wrong under your fingers, switches that were hard to find in low light, or surfaces that collected dirt and grime. The ABILKEEN 8mm, 10mm, and 12mm small metal push button switches address all of these frustrations. With three distinct head styles—flat, high, and domed—these switches give designers the flexibility to match the interface to the operator, not the other way around. ABILKEEN understands that the best control panels are the ones you do not have to think about. These switches are designed to be intuitive, durable, and reliable.

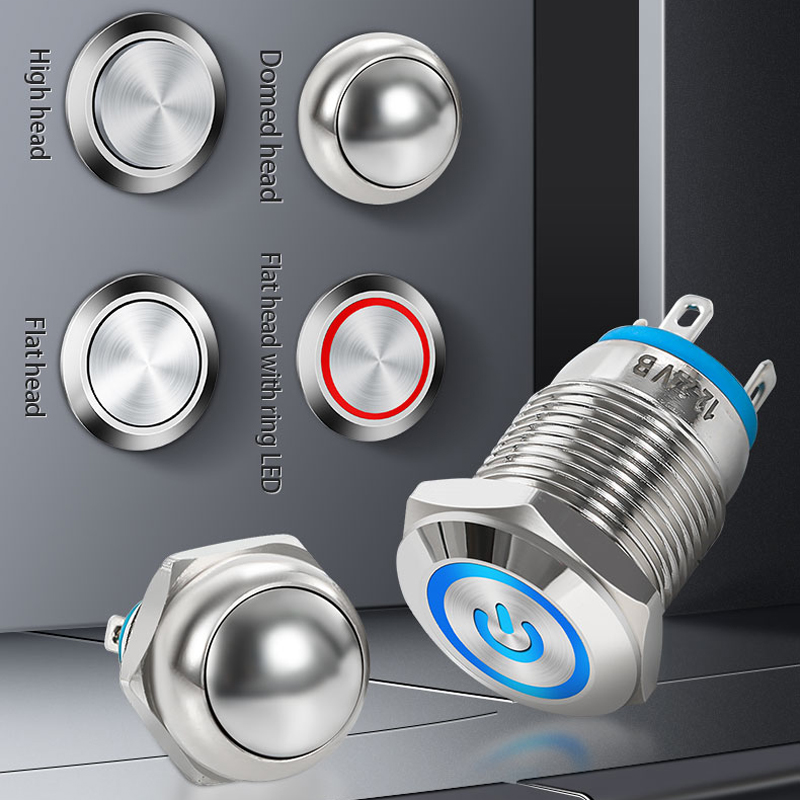

Let us examine the three head styles. The flat‑head version sits nearly flush with the panel surface, offering a clean, minimalist look that resists accidental activation and simplifies cleaning. This is a popular choice for control panels where space is limited and operators need a smooth, low‑profile interface. The high‑head variant projects prominently above the panel, making it easy to locate and press even when wearing thick gloves or in low‑visibility conditions—a common requirement on factory floors and outdoor machinery. The domed head combines the advantages of both, providing a subtle rise with a comfortable concave depression that naturally guides the fingertip, delivering positive tactile feedback with each press. ABILKEEN offers three distinct ergonomic experiences in the same compact footprint.

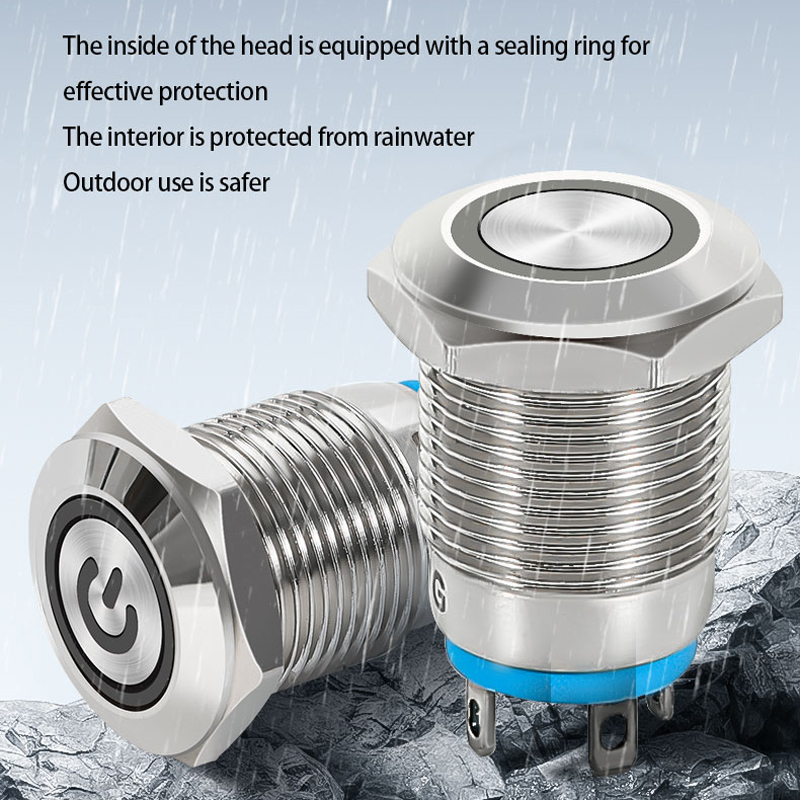

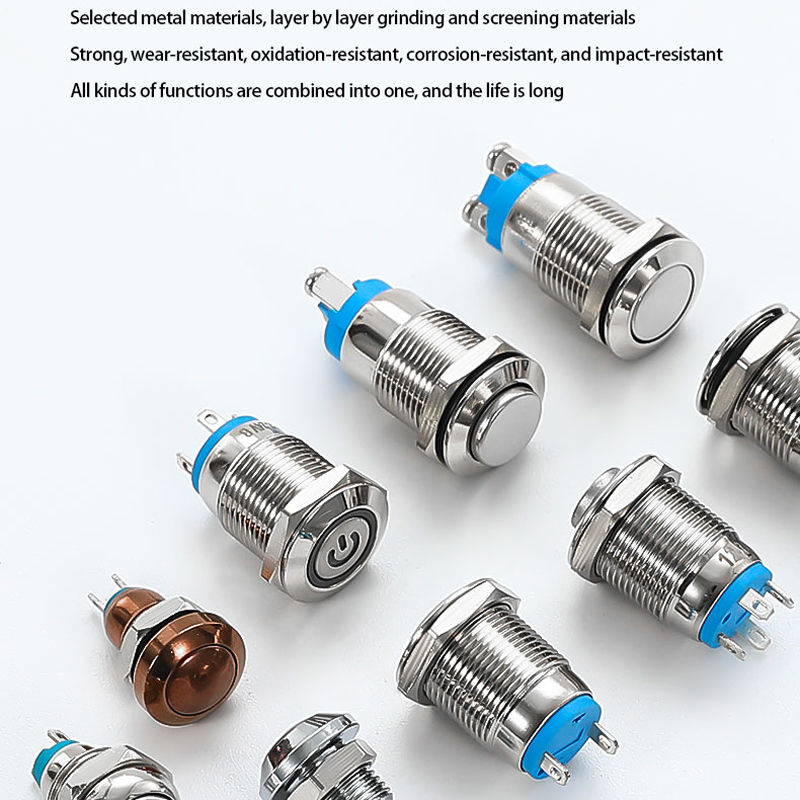

Despite their small footprint, these switches are built from durable materials—nickel‑plated brass, stainless steel, or anodized aluminum—to withstand vibration, impact, and corrosion. Nickel‑plated brass provides excellent corrosion resistance at a practical price point. Stainless steel offers maximum durability for marine and outdoor environments. Anodized aluminum delivers a lightweight, modern aesthetic with a sleek finish. Sealed with an internal O‑ring, they achieve IP65 or IP67 protection against dust and water jets, making them suitable for damp workshops, outdoor terminals, and even marine environments. The O‑ring creates a watertight seal around the actuator, preventing moisture ingress even during high‑pressure washdowns. Operating temperatures range from -20°C to +55°C, ensuring stable performance across seasonal variations and diverse climate conditions.

Electrical specifications are another area where these miniature switches exceed expectations. Rated at 3A / 250V AC (or 2A / 24V DC), they handle a wide range of control signals and low‑power loads. Contact resistance is kept below 50mΩ, ensuring reliable signal transmission that control systems depend on. The silver‑alloy contacts provide stable switching over 500,000 mechanical cycles and 100,000 electrical operations. The momentary action—push‑to‑make, release‑to‑break—is standard across the series, providing intuitive, spring‑return operation. For applications requiring a different behavior, variants with a latching function are available on request. ABILKEEN designs switches that match your circuit requirements.

Termination options provide installation flexibility for different assembly processes. The switches are available with solder lugs for hand‑soldered connections, PCB pins for automated pick‑and‑place assembly, and pre‑wired leads that eliminate the need for soldering during installation. The pre‑wired option is particularly valuable for high‑volume manufacturing environments where assembly efficiency is critical. For projects requiring specific lead lengths or connector types, ABILKEEN offers custom termination configurations upon request. We understand that your production process is unique, and we adapt to it rather than forcing you to adapt to us.

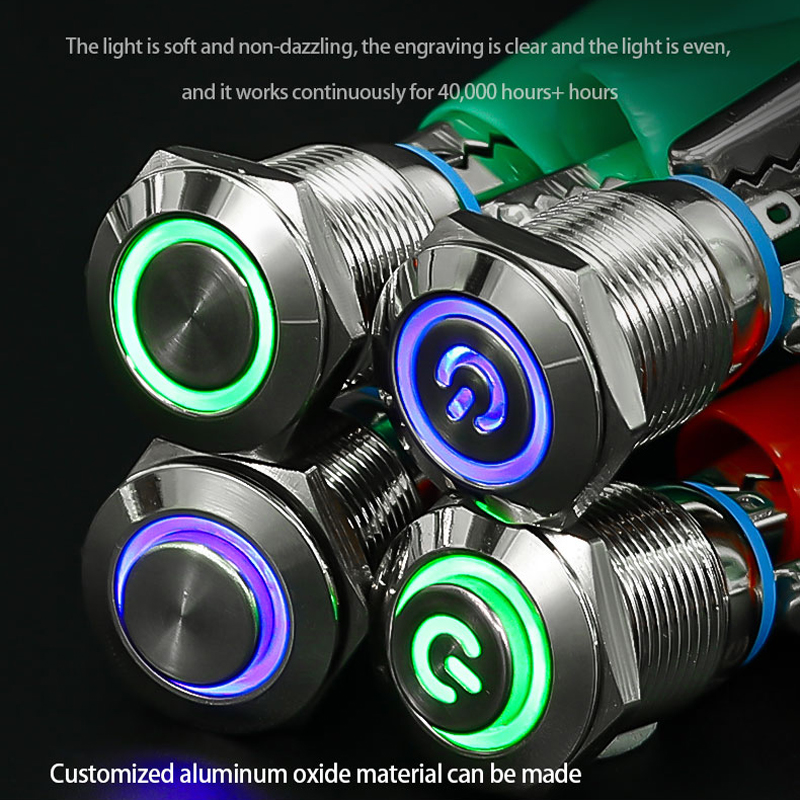

For applications requiring visual status indication, many models come with an integrated ring LED around the actuator. The circular LED ring provides bright, even illumination that enhances visibility and indicates status at a glance. Colors such as red, green, blue, yellow, and white can be ordered, with voltages from 3V to 24V DC. The illumination can be steady or flashing, serving as a power‑on indicator, operation signal, or alarm alert. This integrated illumination reduces the need for separate indicator lamps, saving panel space and simplifying wiring. ABILKEEN has combined status indication and switching into a single, elegant component.

The application versatility of these switches is remarkably broad. Industrial control panels and PLC interfaces benefit from the rugged construction and tactile feedback. Medical diagnostic instruments and portable devices require the compact size and sealed design. Security systems, access control panels, and intercoms use them for reliable, long‑life switching. Automotive interior switches and dashboard controls appreciate the premium metal aesthetic. Public kiosks, ticketing machines, and outdoor terminals rely on the IP67 sealing and vandal‑resistant construction. Laboratory and test equipment where space is at a premium choose these switches for their compact footprint. Whatever your industry, ABILKEEN has a switch that fits your application.

Are you ready to specify a miniature push button switch that combines three ergonomic head styles, rugged metal construction, IP67 sealing, and optional ring LED illumination in an 8‑12mm footprint? The ABILKEEN series is available now with comprehensive OEM/ODM customization—including custom engraving of logos, symbols, or text on the actuator or bezel, housing finishes tailored to specific color requirements, and cable assemblies to custom lengths with your choice of connectors. Every batch undergoes 100% inspection before shipment, and ABILKEEN holds CE, RoHS, and ISO9001 certifications. Samples are usually ready within 3 working days, while production orders are completed in 7 to 15 days depending on quantity and customization. Contact ABILKEEN today for technical datasheets, product samples, or to discuss your specific application requirements. Choose the miniature switches that deliver big performance in a small package. Choose ABILKEEN.
