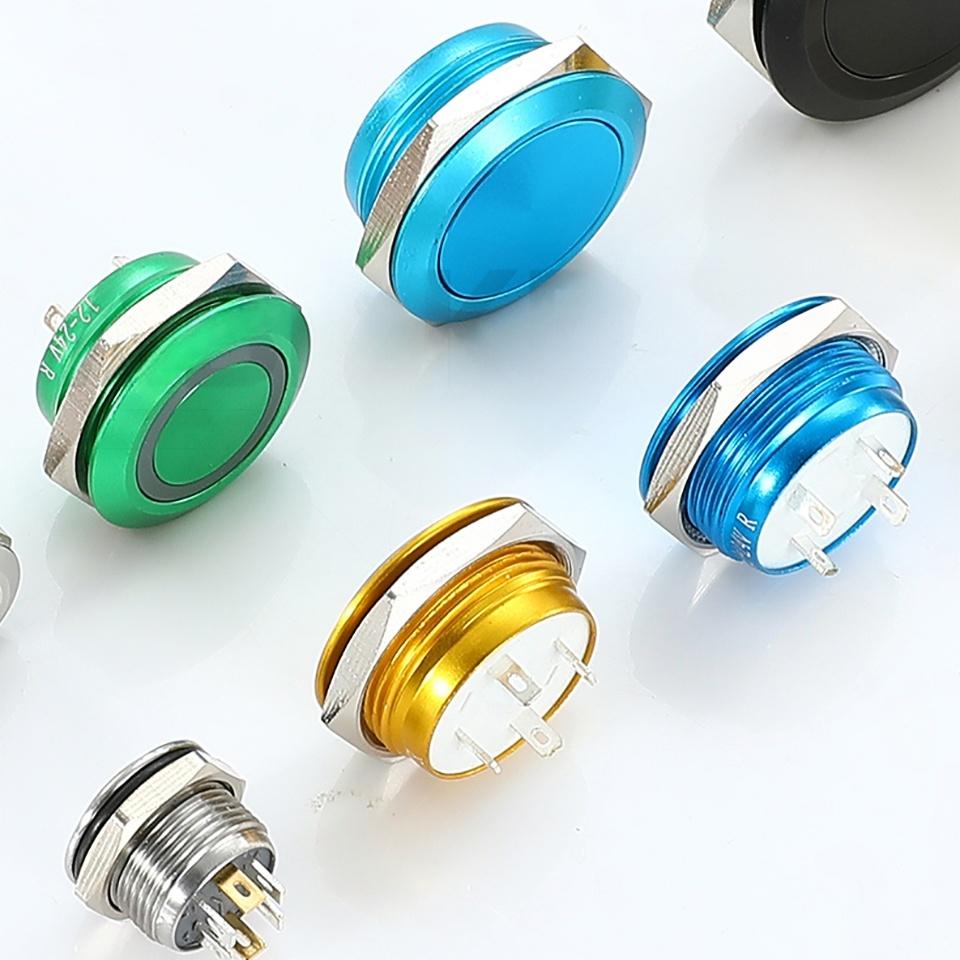

Have you ever opened a portable instrument or a compact control panel and realized there is simply no room for a standard switch? Every millimeter of internal space is already spoken for, and the bulky switches on the market just will not fit. The ABILKEEN 12-30mm ultra-short waterproof metal tact switch series was engineered specifically for this dilemma. With overall height reduced by approximately 30% compared to conventional switches, these tact switches occupy minimal behind-panel space while maintaining full operational functionality. ABILKEEN has reimagined the tact switch for the space-constrained reality of modern equipment design.

Let us talk about what makes this series truly unique: the ultra-short body construction. Conventional tact switches protrude far behind the panel, consuming valuable internal volume that could otherwise house batteries, circuit boards, or other components. The ABILKEEN series reduces that protrusion by nearly a third. This may not sound dramatic until you try to fit a standard switch into a slim handheld device or a shallow control enclosure. The space-saving design makes these switches particularly suitable for portable instruments, compact control panels, smart home devices, and other applications where internal real estate is at a premium. ABILKEEN has proven that compact does not mean compromised.

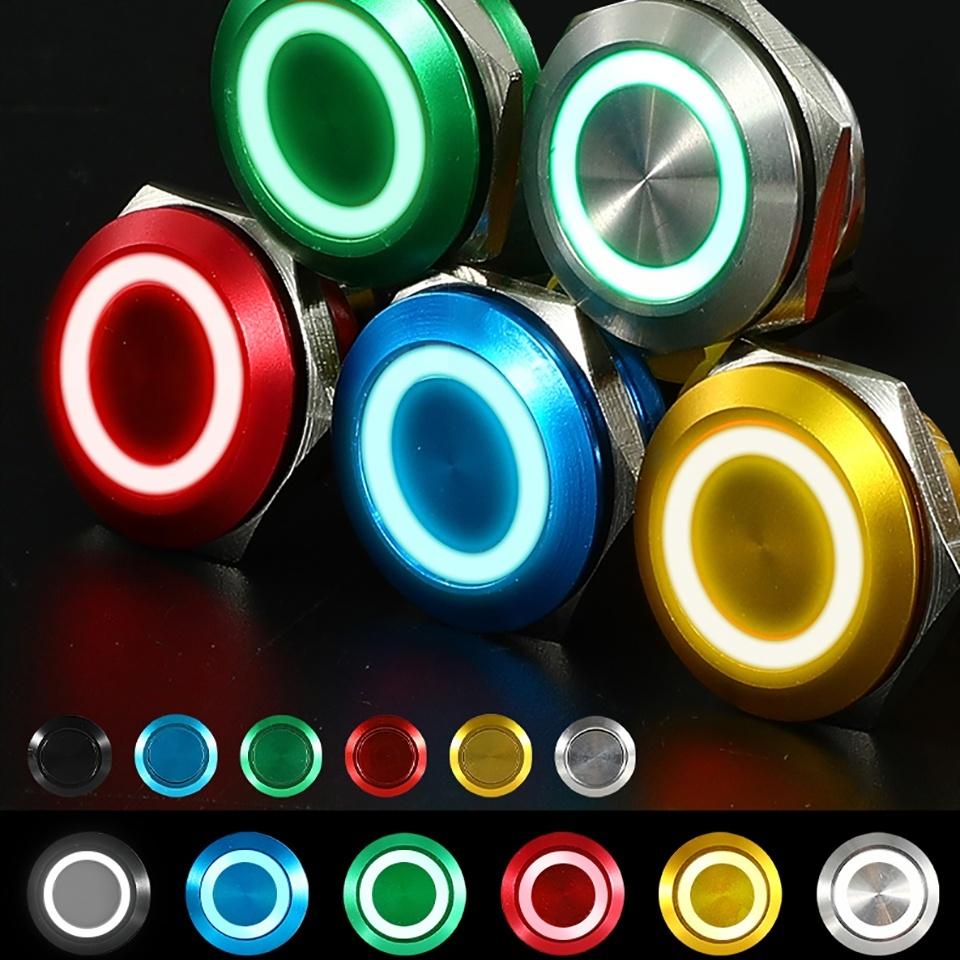

The shell options offer designers a meaningful choice. The switches are available in two distinct materials to accommodate different aesthetic and performance requirements. Stainless Steel (SUS304) offers superior corrosion resistance, mechanical strength, and a classic metallic finish. This option is ideal for marine environments, outdoor equipment, and applications requiring maximum durability. Black Aluminum Oxide (anodized aluminum) features a sleek, modern matte black appearance with excellent scratch resistance and lightweight properties. The anodized finish provides enhanced surface hardness and corrosion protection while delivering a premium visual appeal that complements contemporary product designs. Both shell options are available across the entire 12mm to 30mm diameter range, allowing designers to match switch aesthetics to panel designs without compromising on performance. ABILKEEN gives you the freedom to choose.

The IP65/IP67 waterproof protection is another critical feature. Through precision sealing technology, the series achieves complete resistance to dust ingress and protection against continuous water immersion. An integrated rubber O-ring creates a watertight seal around the actuator, ensuring reliable operation in wet environments, outdoor installations, and applications exposed to rain, washdowns, or moisture. We have tested these switches under running water, in humidity chambers, and after submersion. They emerge and function as if nothing happened. For equipment that must survive splash zones, outdoor exposure, or occasional drops into puddles, this waterproofing is non-negotiable. ABILKEEN seals the switch so you do not have to worry about the environment.

Operating temperatures span from -20°C to +70°C, guaranteeing stable performance across diverse climate conditions. This range covers the vast majority of indoor and outdoor applications, from cold storage facilities to sun-exposed outdoor kiosks. The internal components are selected for stability across this temperature spectrum. You will not experience changes in tactile feel or electrical performance as the temperature fluctuates. For equipment manufacturers shipping products globally, this temperature resilience reduces the need for climate-specific variants. ABILKEEN has designed a switch that performs consistently wherever it is installed.

Tactile feedback is where the ABILKEEN switch distinguishes itself from cheaper alternatives. The switches utilize high-quality phosphor bronze springs and silver-plated contacts to deliver crisp, satisfying tactile feedback with every press. You will feel a distinct, responsive click that confirms the switch has actuated. This feedback reduces operator uncertainty and speeds up input. The phosphor bronze spring maintains its elasticity over the life of the switch, ensuring that the tactile response does not degrade with use. Contact resistance is maintained at 50mΩ maximum, ensuring consistent signal transmission. For equipment that operators use repeatedly throughout the day, this consistent feel matters. ABILKEEN engineers have tuned the tactile response for confidence and comfort.

The mechanical life exceeding 1,000,000 cycles is another testament to the quality of these switches. That is one million presses—far more than most equipment will ever see in its service life. For high-frequency use scenarios like production line controls, public kiosks, and industrial equipment, this longevity translates to fewer replacements and lower maintenance costs. The silver-plated contacts resist oxidation and maintain low resistance over time, while the phosphor bronze spring does not fatigue. The combination of robust materials and precision assembly results in a switch that outlasts the equipment it controls. ABILKEEN builds switches for the long haul.

Are you ready to specify an ultra-short tact switch that combines space-saving design, premium shell options, IP67 waterproofing, crisp tactile feedback, and one-million-cycle reliability? The ABILKEEN 12-30mm ultra-short waterproof metal tact switch series is available now in mounting diameters from 12mm to 30mm, with your choice of stainless steel or black aluminum oxide housing. Each switch is factory-tested for mechanical operation, contact resistance, and waterproof integrity. Contact ABILKEEN today for a product sample, a complete technical datasheet, or a volume quotation. Whether you are designing portable instruments, compact control panels, or smart home devices, choose the tact switches that save space without sacrificing performance. Choose ABILKEEN.
