| Operation Mode | ON-OFF |
| Current Rating | 18 Amps |
| Operating Voltage | 12 Volts |
| Contact Type | Normally Open |
| Connector Type | Crimp, Plug In |
| Brand | ABILKEEN |
|
MOQ |
100 |

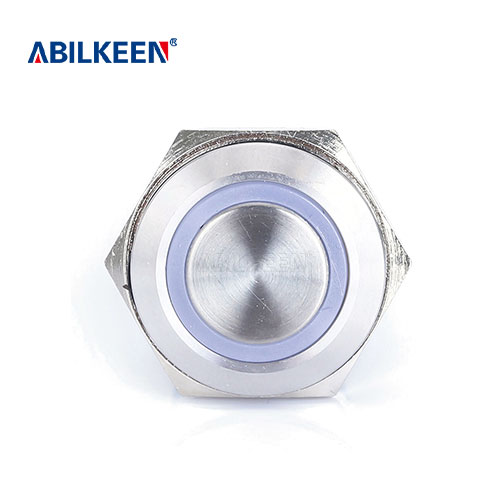

Heavy Duty Metal Push Button Switch
Rating: 18A 0-250V AC/DC
Protection: IP67 IK10
Operation: Latching / Momentary
Structure: 1NO
Mounting Hole: 19mm / 0.75"
Shell Material: Aluminium Alloy
Long Work Life
The metal shell and push part is not easy to damage.
The Mechanical work Life is 500,000 times
The Silver Alloy contact makes the Electrical Work Life more than 100,000 times.
Waterproof IP67
The shell is full metal and there's a rubber ring to seal the mounting which make the switch achieve IP67 Waterproof degree.
It can be used in humid environment, such as boat, Marine etc.
Multiple Choice
16mm 19mm 22mm mounting hole for choice.
You can also choose momentary or Latching as you like.
|
Product Name |
Heavy Duty Push Button Switch |
|
Model |
IB19K3-P10-E |
|
Mounting Hole |
19mm |
|
Operation Type |
Momentary/Latching |
|
Switch Combination |
1NO |
|
Head Type |
Flat /High/Domed round head |
|
Terminal type |
4 Pin Terminals |
|
Enclosure Material |
Brass nickel/Stainless steel |
|
LED Color |
Red/Yellow/Blue/Green/White |
|
LED Voltage |
3-6V / 12-24V/ 48V/110-220V |
|
Delivery Days |
1-7 days |
|
Contact Resistance |
50 mΩ max |
|
Insulation Resistance |
1000MΩ Min |
|
Dielectric Intensity |
2000VAC |
|
Operating Temperature |
-20°C ~+55°C |
|
Wire Soldering |
Acceptable and with fast shipping |
|
Accessories |
Nut |
|
What You Get |
1 x Push Button Switch,19mm, With Ring led |
LED Illumination
IP68 Rated
Impact Resistant
High Temperature Resistant
