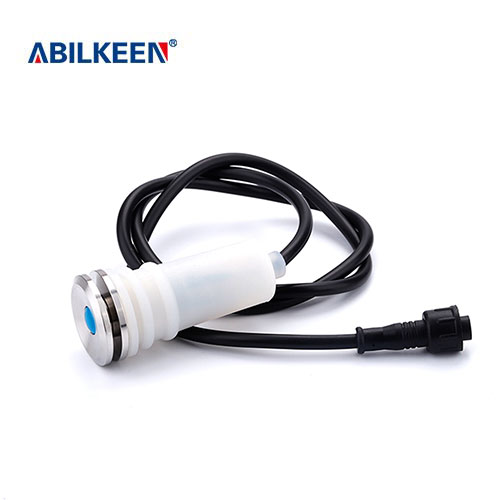

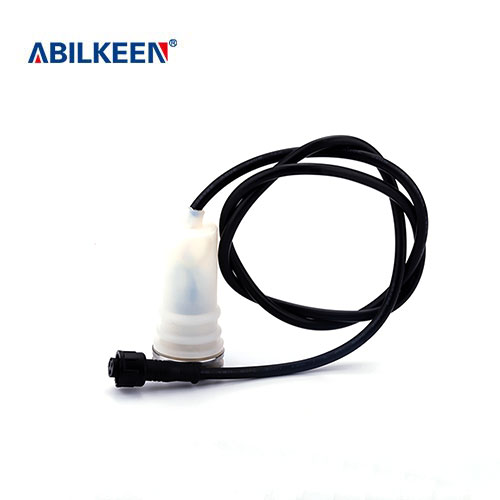

| Hole size | 19mm |
| For toilet flushing system | |
| Switch rating | 5A/250VAC |
| LED type | Dot led |
| Brand | ABILKEEN |
|
MOQ |
100 |
Specification:
Mounting hole diameter: Φ19mm
Switch rating: 5A/250VAC
Contact resistance: <50MΩ
Insulation resistance: >1000MΩ
Dielectric strength: 2000V AC
Ambient temperature: -20 to 55°C
Mechanical life: >500,000 cycles
Electric life: >50,000 cycles
Polarity sensitive: yes
Switch combination: 1NO1NC
Operation types: momentary (re-settable)
Panel head shape: Concave
Panel thickness: 1-15mm
Nut torque: 5-14Nn
Operation pressure: 2.5-4N
Operation stroke: 2.8mm
LED lamp type: Dot illuminated
LED voltage: 6/12/24/110/220V
LED colors: red/orange/green/yellow/white/blue
LED life: 40,000 hours
Shell materials: Stainless steel
Contact material: Silver alloy
Protection degree: IP67 IK10
|
Product Name |
Push Button Switch |
|
Model |
IB19S-MT10F-D-T |
|
Mounting Hole |
19mm |
|
Operation Type |
Momentary (Reset) |
|
Switch Combination |
1NO1NC |
|
Actuator Shape |
Concave Head |
|
Terminal type |
5 Pin Terminals |
|
Illuminated or not |
Yes |
|
Led Voltage |
12V (or 3V/5V/24V/110V/220V/others) |
|
Led Color |
Blue (Red, Green, Yellow,White,Orange available) |
|
Illuminated Type |
Dot led illuminated |
|
Enclosure Material |
Stainless steel |
|
Delivery Days |
1-7 days |
|
Contact Resistance |
50 mΩ max |
|
Insulation Resistance |
1000MΩ Min |
|
Dielectric Intensity |
2000VAC |
|
Operating Temperature |
-20°C ~+55°C |
|
Customized symbol,colored housing or Connector |
Acceptable and with fast shipping |
|
Accessories |
Nut, Rubber Waterproof O-ring |
|
Customized Order Confirm |
1. What Led Color? 2. What Led Voltage? |
