| Mounting Hole Size | 16mm |
| Position option | 2/3 |
| Shell Color | Silver/Black |
| Max. Current | 10A |
| Light Color | Red/Yellow/Blue/Green/White |

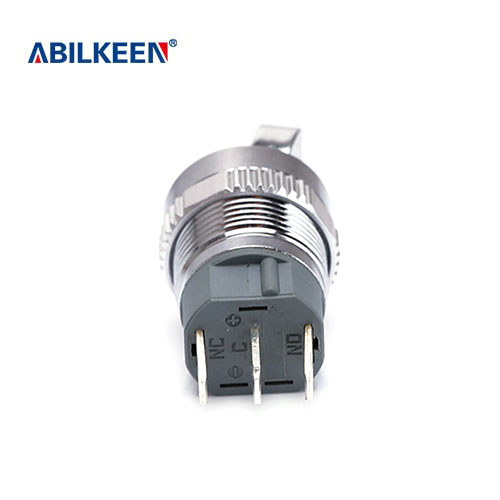

IB16F-T11Z-N 16mm Select Switch 3 Position Latching 1NO1NC 10-15A Rotary Switch Waterproof Selector Toggle Switch
Introducing the IB16F-T11Z-N 16mm Select Switch, a versatile and durable rotary switch designed to meet the demands of various industrial applications. This switch boasts exceptional corrosion resistance, impact resistance, and vibration resistance, ensuring reliable performance even in harsh environments. Its upper exposed part is equipped with waterproof, dust-proof, oil-proof, pressure-resistant, and anti-corrosion characteristics, making it suitable for use in challenging conditions. Despite its robust features, the switch maintains a small and exquisite design, offering an economical and cost-effective solution for your switching needs.
Equipped with copper parts and silver contacts, the IB16F-T11Z-N switch ensures quick and reliable electricity conduction. The larger and thicker silver contacts contribute to the switch’s ability to provide a reliable contact and long service life, minimizing the need for frequent replacements. Whether you require a 3-position latching switch with 1NO1NC configuration or a 10-15A rated current capacity, this waterproof selector toggle switch delivers on performance and durability, making it an ideal choice for a wide range of industrial applications.
With its delicate exterior and robust build, the IB16F-T11Z-N 16mm Select Switch strikes a balance between functionality and aesthetics. Its compact size and exceptional features make it a versatile solution for machinery, equipment, and control systems. Whether you need a reliable switch for heavy-duty machinery or industrial control panels, this switch offers the performance and durability required to meet your operational needs, making it a valuable addition to your industrial equipment lineup.
|
Product Name |
Selector Switch |
|
Model |
IB16F-T11Z/N |
|
Mounting Hole |
16mm |
|
Operation Type |
Latching |
|
Switch Combination |
1NO1NC |
|
Head Type |
Rotary head |
|
Terminal type |
Solder Terminal |
|
Enclosure Material |
Brass Nickel |
|
Delivery Days |
3-7 days after payment received |
|
Contact Resistance |
50 mΩ max |
|
Insulation Resistance |
1000MΩ Min |
|
Dielectric Intensity |
2000VAC |
|
Operating Temperature |
-20°C ~+55°C |
|
Wire Connector / Wire soldering |
Acceptable and with fast shipping |
|
Accessories |
Nut, Rubber ,Waterproof O-ring |
