| Mounting Cut Hole | 28mm |
| Operation | Momentary/Latching |
| Structure | 1NO1NC |
| Protection Level | IP67, IK10 |
| Enclosure Material | Stainless steel/Brass |
About this item

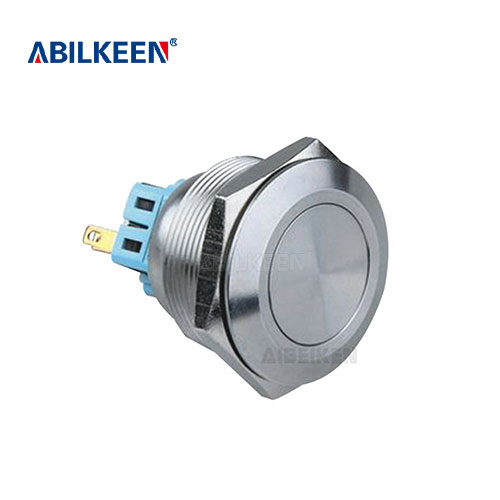

When it comes to reliable and durable push button switches, the IB28S-P11 28mm Metal IP67 Push Button Switch stands out as a top choice.With a mounting cut hole of 28mm, this switch is designed for easy installation and operation.Whether you need a momentary or latching operation, this switch offers flexibility to suit your specific needs.Its 1NO1NC structure provides versatility, while its IP67 IK10 protection levels ensure durability and resistance to harsh environmental conditions.Additionally,the head shape of this switch can be chosen as flat or high, adding to its adaptability for various applications.
The IB28S-P11 28mm Metal IP67 Push Button Switch is a reliable choice for industries requiring a robust and long-lasting switch.Its IP67 protection level ensures that it is dust-tight and protected against water jets, making it suitable for outdoor and industrial environments where exposure to elements is a concern.The IK10 protection level also means that it is highly resistant to impact, making it ideal for heavy-duty applications.Whether it’s used in machinery, control panels, or outdoor equipment, this switch is designed to withstand the rigors of demanding environments.
In addition to its durability, the IB28S-P11 28mm Metal IP67 Push Button Switch offers ease of installation and operation. With its 28mm mounting cut hole, it can be seamlessly integrated into various equipment and control systems. The option for momentary or latching operation allows for flexibility in how the switch is used, catering to different user preferences and application requirements.The choice of flat or high head shape further enhances its adaptability, ensuring that it can meet the specific needs of different industries and applications.
With its robust construction, high protection levels, and flexible operation options, this switch is well-equipped to meet the demands of diverse applications.
|
Product Name |
28mm metal push Button Switch |
|
Model |
IB28S-P11 |
|
Mounting Hole |
28mm |
|
Operation Type |
Momentary/Latching |
|
Switch Combination |
1NO1NC |
|
Head Type |
Flat /High round head |
|
Terminal type |
4 Pin Terminals |
|
Enclosure Material |
Stainless steel/Brass/Aluminum |
|
Brand Name |
ABILKEEN |
|
Operation Temperature |
-20℃ to +55℃ |
|
Protection Level |
IP67, IK10 |
|
Dielectric Intensity |
2000VAC |
|
Wire Soldering |
Acceptable and with fast shipping |
|
Contact resistance |
50mΩ |
|
Insulation resistance |
1000mΩ |
