100% Brand new
High quality
Mechanical life for 500,000 cycles
Degree of protection: IP67, IK10
Base: PA66
About this item
Self lock switch: Push & Hold,ON; Push it again,OFF.
Mounting hole size: 28mm
Switch rating: 5A/250V AC
Head shape: Flat/High Flush
Enclosure material: Stainless Steel
Switch combination: 1NO1NC
Switch Type: SPDT
Operation Type: Momentary (push the button, ON; release it, OFF)
Panel Cutout Diameter: 1-1/8" (28mm)
Thread Depth: 3/4" (18mm)
Face plate Diameter: 1-1/4" (32mm)
Total Depth (Including Contacts): 1-11/16" (43mm)
What's Latching Switch
Latching switch, Push & Hold, ON; Push again, OFF
What's the Wire Connector
With the wire connector, you don't need to solder the terminals, make installing very easy Saves the issue of soldering to the switch, and possibly melting it as well You can replace the switch anytime by just unplugging the switch from its socket
What's Latching Switch Used for
Great for electromagnetic starter, relay, Doorbell, Horn Button Switch, PC Power Switch or any circuit controls
What's Note
-These switches come with a rubber O-ring which makes them splash resistant but they can NOT be submerged underwater
-The project you are going to be used for, don't let current go above 5 amps. Or the switch will get warm and to be burned out
|
Product Name |
Push Button Switch |
|
Model |
IB28E-P11-/S |
|
Mounting Hole |
28mm |
|
Operation Type |
Momentary /Latching (Maintain) |
|
Switch Combination |
1NO1NC |
|
Actuator Shape |
Flat Round Head |
|
Terminal type |
3 Pin Terminals |
|
Illuminated or not |
Non-illuminated |
|
Led Voltage |
12V (or 3V/5V/24V/110V/220V/others) |
|
Led Color |
NO |
|
Illuminated Type |
NO Led |
|
Enclosure Material |
Stainless Steel |
|
Delivery Days |
1-7 days |
|
Contact Resistance |
50 mΩ max |
|
Insulation Resistance |
1000MΩ Min |
|
Dielectric Intensity |
2000VAC |
|
Operating Temperature |
-20°C ~+55°C |
|
Customized symbol,colored housing or Connector |
Acceptable and with fast shipping |
|
Accessories |
Nut, Rubber Waterproof O-ring, |
|
What You Get |

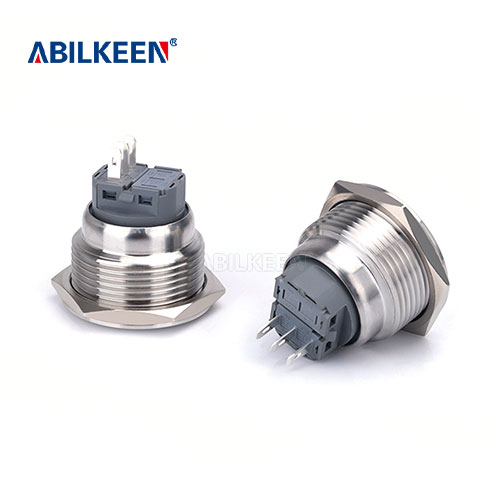

1X 28mm, Push button switch |
