KCD2 series Rocker Switch

Specification

1. This rocker switch with red LED light has an input voltage of 125V-250V AC. When the switch is turned on, the LED light will illuminate to indicate that the unit is operating.

2. Mechanical working life of more than 50,000 cycles and electrical working life of more than 10,000 cycles.

3. ON-OFF, 4 Pins，6pins

4. 20A 125V AC ,16A 250V AC

5. Mounting Size: 29*22mm

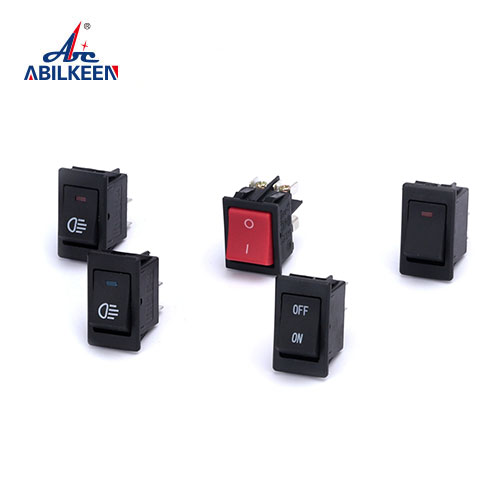

KCD2-201  KCD2 series 4/6 Pins Waterproof LED Illuminated Square Head On Off Rocker Switch

Product description

Product name: KCD2 series Rocker Switch

Operation Mode：ON-OFF

Current Rating：20 Amps, 16 Amps

Operating Voltage：125/250Volts

Contact Type：Normally Open

Terminal：Pin,Terminals

Mounting Type：Snap-In Mount

Actuator Type：Rocker

International Protection Rating：IP54

Number of Positions：2position/3position

Introduction

Introducing the KCD2 series 4/6 Pins Waterproof LED Illuminated Square Head On Off Rocker Switch, a reliable and versatile solution for your electrical control needs. This rocker switch is designed to provide a seamless and efficient operation, with a red LED light that illuminates when the switch is turned on, indicating its active status.

With an input voltage of 125V-250V AC, this switch is suitable for a wide range of applications, offering a mechanical working life of more than 50,000 cycles and an electrical working life of more than 10,000 cycles. This ensures long-term durability and consistent performance, making it an ideal choice for various industrial and commercial settings.

The KCD2 series rocker switch is available in both 4 and 6 pins configurations, providing flexibility to suit different installation requirements. It offers a current rating of 20A at 125V AC and 16A at 250V AC, making it capable of handling high power loads with ease. The mounting size of 29*22mm further enhances its compatibility and ease of installation.

One of the key features of this rocker switch is its waterproof design, which makes it suitable for use in environments where exposure to moisture or liquids is a concern. This ensures reliable operation even in challenging conditions, adding to its overall versatility and reliability.

Whether you need a dependable switch for industrial machinery, automotive applications, or other electrical control systems, the KCD2 series rocker switch is a dependable choice. Its robust construction, LED illumination, and waterproof design make it a valuable addition to any electrical control setup, providing peace of mind and reliable performance.

In conclusion, the KCD2 series 4/6 Pins Waterproof LED Illuminated Square Head On Off Rocker Switch offers a combination of durability, versatility, and performance, making it an excellent choice for various electrical control applications.
