| Solid Wires (BV) | 0.08~4mm² (24-12AWG) |
| Stranded Wires (BVR) | 0.08~2.5mm² (24-14AWG) |
| Flexible Wires (RV) | 0.08~2.5mm² (24-14AWG) |
| Shell Material | Flame retardant PC |
| Internal material | Pure copper |
| Spring | Imported stainless steel |
【PRACTICAL】lever wire connector,quick wiring,can be fitted in seconds to stripped cables,tap into any wire with ease.
【SIMPLE AND CONVENIENT】Open the wrench of the wire connectors, insert the wire and press the wrench, the wiring is completed, and the wiring can be completed more efficiently and quickly.
【SCOPE OF USE】Lever wire connectors are used in companies, construction sites, etc. Used for electrical, electric control, power supply, home appliances, lighting, machinery and other wire connection parts of the wire connection.
【SAFER ALTERNATIVES】electrical connector shell is made of PC flame retardant, and the conductor is pure copper, which can be connected to solid wire (0.2-4mm²/24-12AWG) and stranded wire (0.2-2.5mm²/24-14AWG). Imported stainless steel is used inside to lock the wires firmly without loosening, and because they can be reused, the wires can be disassembled or reconnected for multiple times.

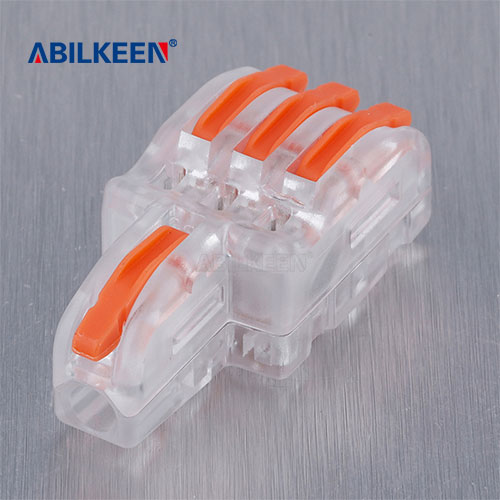

Lever Wire Connectors
|
Product type |
Compact Splicing connector |
|
Conductor |
2/3/4/5 |
|
Wire diameter |
0.08-4.0mm²(BV or RV) |
|
Rated voltage |
250/400V |
|
Rated current |
32A |
|
Voltage resistance |
4KV |
|
Strip length |
10mm |
