| Rated Voltage | 250V/4KV |
| Rated Current | 32A |
| Shell Material | Modified nylon(PA66) |
| Guide Strip | Electrolytic copper (Surface tin plating) |
| Spring | Nickel chromium alloy steel |
| Maximum Operating Temperature | 105℃ |

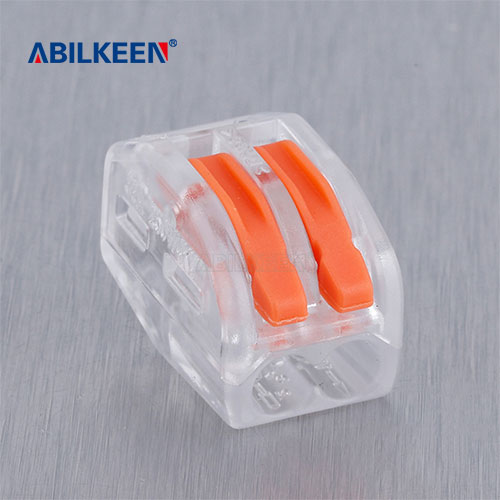

It is made of nylon PA66 modified with high quality flame retardant insulation material, which has the advantages of long life, corrosion resistance, aging resistance, high pressure resistance, insulation and flame retardant.
It is widely used in building wiring, household appliances, lighting, machinery and other wire connecting parts, where space is very valuable for all required connections.
Strip wire lead to 9-10mm, open clamping unit and insert your wire lead, lower lever to close the clamp.
【Universal compatibility】Are widely applied to connect any combination of solid, stranded, and flexible copper wires, ideal for compact and complex applications. Suitable for single strand hard wire 0.08~4mm²/28-12AWG, and the multiple strand flexible copper wire 0.08~2.5mm²/28-14AWG. They work with most every gauge of normal household wiring: sockets, switches, cars, loudspeakers, lamps, electrical boxes, chandeliers, fan controls, and much more.
【Reliable & Reusable】Lever wire connectors nut inline splices can be managed separately for different wires to avoid short circuit and fires caused by aging of the staggered band of the wires. It can be recycled several times and can be removed when not in use.
| Brand Name | ABILKEEN |
| Connector Type | Quick Connect, quick disconnect, IDC |
| Contact Material | Copper |
| Gauge | 28-12 |
| Insulation Material Type | Nylon |
| Style | Inline |
| Terminal Type | Butt Terminal |
| Wire Cross section | 0.08~4.0mm²/ 28-12AWG (solid), 0.08~4mm²/ 28-14AWG (stranded) |
| Product Size (3 Conductor) | 17.5(L)*21.3(W)*14.5(H)mm |
