Product Introduction of Dual Display Voltage and Current Meter

Accurate monitoring of parameters such as voltage, current, and temperature is crucial in fields such as automotive electronics, industrial control, and new energy. To meet the needs of different application scenarios, AIBEIKEN has launched a series of dual screen voltage and current meters, providing multiple combination display modes (voltage/voltage, voltage/current, voltage/temperature), suitable for various 12V/24V vehicles, construction machinery, solar energy systems, etc.

This series of products adopts high-precision sensors, anti-interference design, and has a wide voltage input (5-24V DC) to ensure stable operation under complex working conditions. The following is a detailed introduction to the five main models:

Product Comparison Table

Detailed Product Descriptions

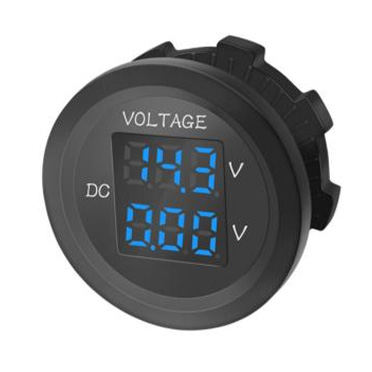

1. DS003V – Dual Voltage Meter (Main+Aux, Long Version)

Applications: Ideal for monitoring two independent power sources, such as RVs (main + auxiliary battery) or trucks (starter + leisure battery).

Features:

Dual-channel input: Independent display for Main and Aux voltages (5-30V DC), accuracy ±0.1V.

Wide-screen design: Long housing, large LED digits for long-distance readability.

Durability: IP65 waterproof/dustproof, reverse polarity and short-circuit protection, operates in -20℃~70℃.

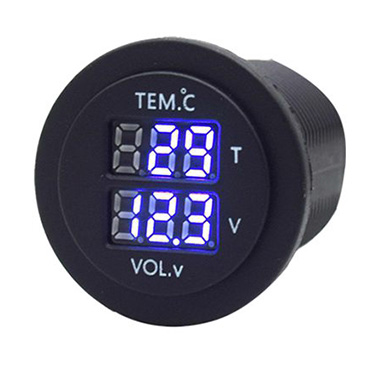

2. DS005V – Voltage + Temperature Meter (Long Version)

Applications: Engine compartment temp monitoring, lithium battery thermal management, industrial overheating alerts.

Features:

Voltage + temp display: Main screen shows voltage, sub-screen monitors real-time temp (-40℃~55℃), accuracy ±1℃.

Heat-resistant: High-temp materials, external sensor probe (1.5m cable) for flexible installation.

Alarm function: LED flashes when temperature exceeds limits, preventing equipment damage.

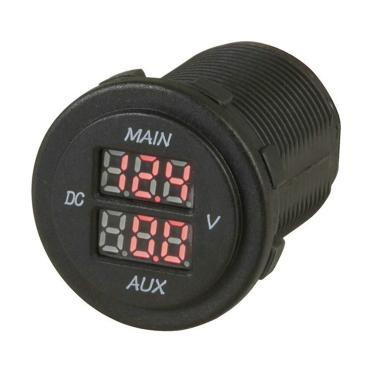

3. DS006V – Dual Voltage Meter (Main+Aux, Short Version)

Applications: Space-limited vehicles (motorcycles, UTVs) or control panel embedded installations.

Features:

Compact design: Short dimensions , lightweight (50g), saves space.

Low power: Operating current <10mA, suitable for continuous use.

Vibration-proof: Optimized circuitry to prevent display fluctuations from vehicle shocks.

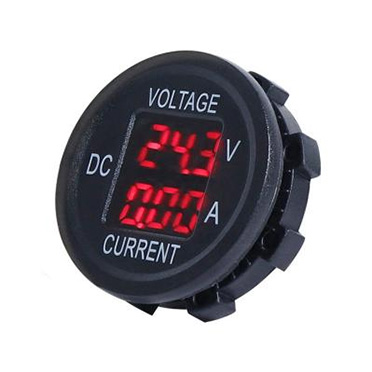

4. DS012V – Voltage + Current Meter (Short Version)

Applications: Charge/discharge monitoring (solar panels, forklift batteries, inverters).

Features:

Current detection: Measures 0-10A DC (requires external shunt), accuracy ±1%.

Overload alarm: Audible/visual alert when current exceeds limits, protecting circuits.

Data logging: Optional RS485 output for connecting to PCs for historical analysis.

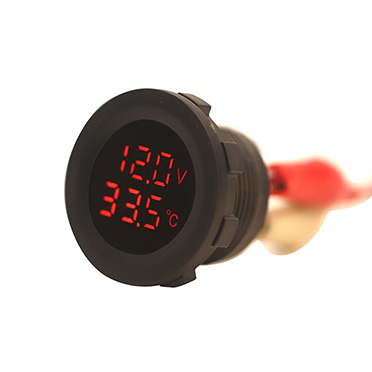

5. DS013V – Voltage + Temperature Meter (Short Version)

Applications: Small-scale temp control (car fridges, cold chain logistics), electronic cooling systems.

Features:

Dual-parameter display: Alternates voltage/temp readings, supports ℃/℉ unit switching.

Fast response: Temp sampling rate 1 second, real-time updates.

Wide voltage range: 5-30V DC input, compatible with 12V/24V systems.

Selection Guide

Multi-power monitoring: Choose DS003V (long) or DS006V (short).

Temp-sensitive applications: DS005V (long for high-temp) or DS013V (short for compact spaces).

Current monitoring: DS012V is ideal for charge/discharge management.

All models support OEM/ODM customization (e.g., range adjustment, logo printing). Contact us for inquiries!
