| Mounting Cut Hole | 19mm |
| Operation | Momentary/Latching |
| Structure | 1NO |
| Switch rating | 15A,12-24V AC/DC; 10A 110-250VAC |
| Protection Degree | IP65 |
|
MOQ |
100 |
About this item
【15 Amp Current Rating】Anti-vandal Switch Current Rating:15 Amps 250V AC; Blue LED lamp voltage: 12V-24V DC/AC. Hole size required: 3/4inch / 19mm, Latching Anti-vandal Switch: Push it, ON; Push it again, OFF.(on off switch)
【IP67 Waterproof Switch】ABILKEEN anti-vandal switch have CE Certification. IP67 waterproof switch protection can be used in wet or dusty enviroment. The shell is made of stainless steel 304 material, which is very sturdy and durable.
【LED Life】The anti-vandal switch light ring adopts a unique design, with a toothed circular transparent cover, making the light source more bright and eye-catching. LED light life: 40000 hours. Using AC/DC LED lamp, the terminals have no difference of anode and cathode. Button mechanical life: 1,000,000 cycles.
【 Contact】Contact material: Silver Alloy, SPST ,1 Normally Open. 4.8 mm wide X 0.8 mm thickness terminal pin for 15A high current use. Two green wires connect the device input and output, and the red and black wires (LED polarity free) connect to the power supply.
|
Product Name |
High Current Anti-vandal Switch |
|
Model |
IB19K3-G10 |
|
Mounting Hole |
19mm |
|
Operation Type |
Momentary/Latching |
|
Switch Combination |
1NO |
|
Head Type |
Flat /High/Domed round head |
|
Terminal type |
2 Pin Terminals |
|
Enclosure Material |
Brass nickel/Stainless steel |
|
Delivery Days |
1-7 days |
|
Contact Resistance |
50 mΩ max |
|
Insulation Resistance |
1000MΩ Min |
|
Dielectric Intensity |
2000VAC |
|
Operating Temperature |
-20°C ~+55°C |
|
Wire Soldering |
Acceptable and with fast shipping |
|
Accessories |
Nut |
|
What You Get |

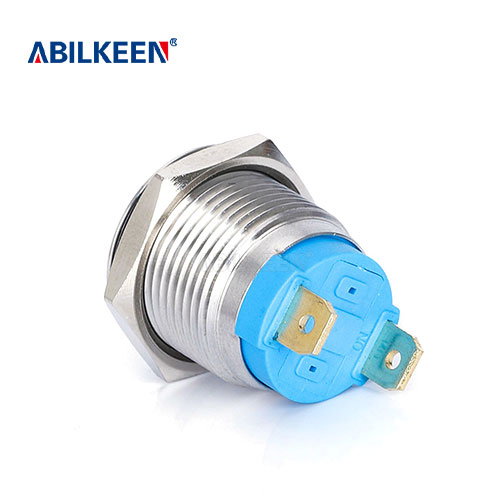

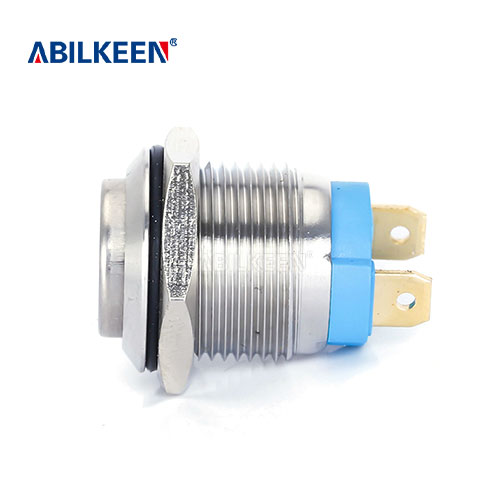

1 x Anti-vandal Switch,19mm, With out led |
LED Illumination
IP68 Rated
Impact Resistant
High Temperature Resistant
