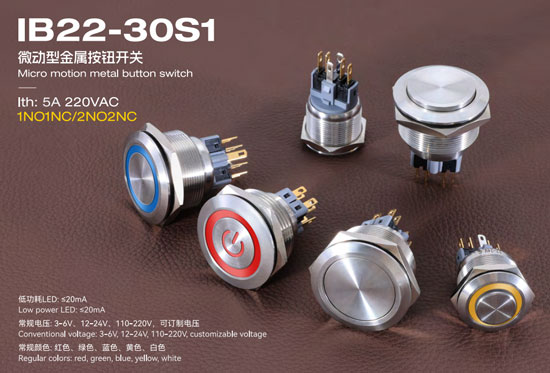

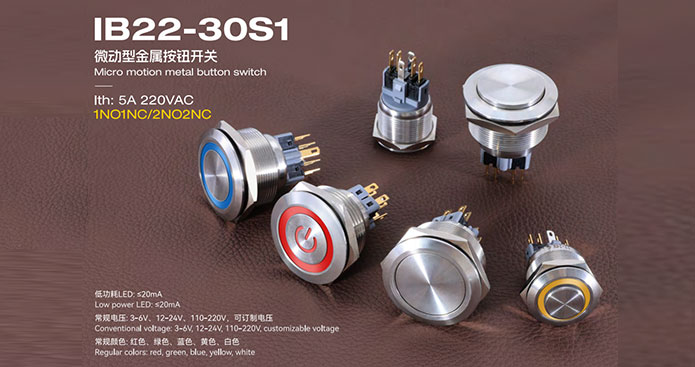

AIBEIKEN company launches a new micro motion metal button switch

AIBEIKEN, as a leading manufacturer in the field of industrial control, AIBEIKEN company proudly launches the latest micro motion metal button switch, designed specifically for high-precision and high durability application scenarios. This product, with its compact structure, diverse configurations, and highly customizable capabilities, can be widely used in mechanical equipment, automated production lines, medical equipment, elevator control, and other fields, providing customers with more flexible and reliable switch solutions.

Ⅰ. Core features of the product

1. Micro switch design, precise triggering

The base integrates a high-sensitivity micro switch, with precise triggering force (standard 0.5-1.5N), ensuring fast response and long lifespan (mechanical lifespan ≥ 100000 times).

Suitable for scenarios that require frequent operation or precise control, such as instruments, safety equipment, etc.

2. Multiple hole sizes to adapt to different panels

Provide three standard hole specifications of 22mm, 25mm, and 30mm to meet the installation needs of different equipment.

3. Flexible contact configuration (1NO1NC/2NO2NC)

1NO1NC (single pole double throw): suitable for simple start stop control.

2NO2NC (Double Knife Double Throw): Supports complex circuit switching, such as dual signal control.

The contact material is silver alloy, with strong conductivity and low contact resistance (≤ 50m Ω).

4. Fully customized indicator lights

Available light colors: red, green, blue, yellow, white, purple, to meet the visual prompt needs of different working conditions.

Voltage adaptation: Supports 3V-220V AC/DC and is compatible with mainstream electrical standards worldwide.

Ⅱ. Application scenarios

Industrial automation: PLC control cabinet, production line emergency stop button.

Medical equipment: precise operation switches for operating tables and diagnostic instruments.

Elevator control: Floor selection button, resistant to frequent pressing.

New energy equipment: charging stations, photovoltaic control panels.

Ⅲ. Technical parameters

Project parameters

Rated voltage/current 250V AC/5A

Insulation resistance ≥ 100M Ω (500VDC)

Operating temperature -25 ℃~+70 ℃

Protection level IP65 (dustproof and waterproof)

Mechanical lifespan ≥ 100000 cycles

Ⅳ. Why choose AIBEIKEN's micro button switch?

Strict quality control: 100% full inspection process, certified by CE and RoHS.

Fast delivery: Standard models take 7 days to ship, customized models take 15-20 days.

Global Service: Supports certification agencies such as UL in North America and ENEC in the European Union.

Instant inquiry:

Visit the official website [www.abilkeen.com] or contact the sales team (email: abbeycon@cnvcb.com ）Get free samples and technical information!

Regarding AIBEIKEN Company:

AIBEIKEN has been focusing on industrial switch manufacturing for 12 years, and its products are exported to more than 50 countries. With innovation and quality as the core, it helps to upgrade global intelligent control.
