Model |
IB30A-QJ-D |
|
Mounting Hole |
30mm |
|
Head Type |
Domed head |
|
Terminal type |
Pin terminal |
|
Contact Resistance |
50 mΩ max |
|
Insulation Resistance |
1000MΩ Min |

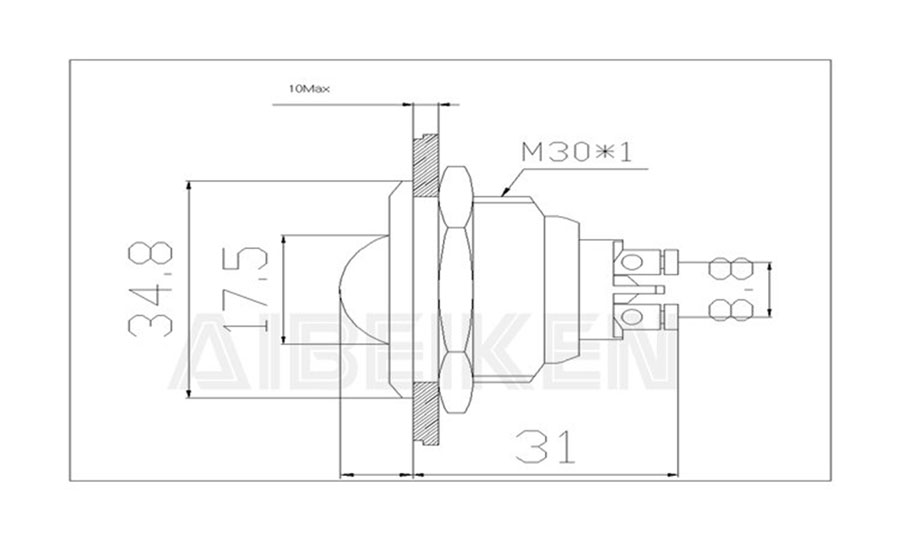

IB30A-QJ-D metal 30mm domed head indicator light for home appliances
Shell material: Stainless steel
Flush mount for easy connection and strong conductivity
Energy-saving and low maintenance cost
Head shape: Domed
Features
Good price indicator light voltage can do 3V 6V 12V 24V110V 220V and so on.
The panel mount indicator light with a round flat-head design.
The color of the mini indicator light can produce 5 colors, including red, green, yellow, blue and white.
100% brand new and high quality, good replacement for your old or broken ones.
|
Product Name |
Metal Indicator Light |
|
Enclosure Material |
Nickel-plated Brass/Stainless Steel |
|
Delivery Days |
5-7 days |
|
Dielectric Intensity |
2000VAC |
|
Operating Temperature |
-20°C ~+55°C |
|
Wire Soldering |
Acceptable and with fast shipping |
|
Voltage |
3/6/12/24/36/48/110/220V |
Note: If you’d like Green actuator, please inform us by mail,thanks!
