| Model | IB12S-PX-D |
| Mounting Hole | 12mm |
| Head Type | Flat chamfer head |
| Terminal type | Wired |
| Contact Resistance | 50 mΩ max |
| Insulation Resistance | 1000MΩ Min |
|
MOQ |
100 |

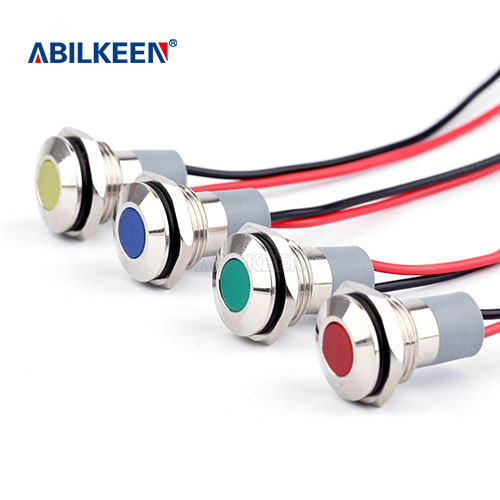

IB12S-PX-D signal lamp is made of brass metal for household appliances
The LED indicator lights are of high standard and not cheap looking warning lights
The indicator light can customize wire length
Shining super bright light, play an important part in warning and indication
Durable in using, the best replacement of old and broken indication lamps
Features
Optional voltage: 3V/5V/6V/12V/24V/36V/48V/110V/220V
Metal indicator lights are available in five colors including red, green, blue, yellow and white.
The nut is easy to tighten and it is used with the O-ring that comes with the product, the waterproof effect is better.
Use of high quality stainless and brass clad nickel shell material, ensure maximum strength and durability for long lasting usage
|
Product Name |
Metal Indicator Light |
|
Enclosure Material |
Nickel-plated Brass |
|
Delivery Days |
5-7 days |
|
Dielectric Intensity |
2000VAC |
|
Operating Temperature |
-20°C ~+55°C |
|
Wire Soldering |
Acceptable and with fast shipping |
|
Voltage |
3/6/12/24/36/48/110/220V |
Note: If you’d like Green actuator, please inform us by mail,thanks!
