Mounting Size |
19mm |
|
Contact Type |
Normally closed |
|
Power Source |
DC |
|
Contact Resistance |
50 mΩ max |
|
MOQ |
100 |
Features

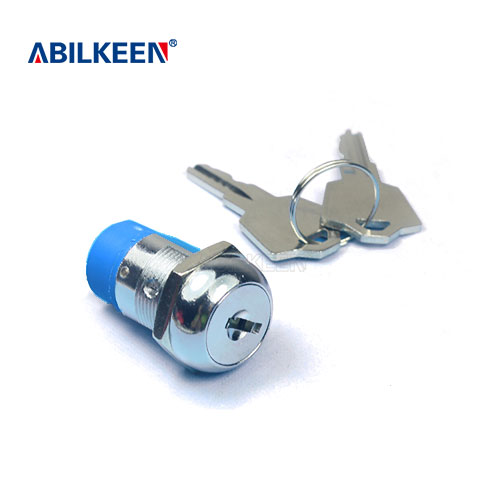

Product name: Key lock switch; Voltage: 48V
Shunt ON/OFF 2 terminals, SPST
Comes with two alike reversible double-bitted keys that can be withdrawn in both positions and are a 2 position pull key
Our key operated rotary switch is safe and reliable to use, and you can use it with confidence.
1. Model number: IY19E-04
2. Key: Brass tubular key.can be withdrawn in 1 or 2 positions
3. This 2 position key operated rotary switch is quality guaranteed
4. Key is removable ONLY in the OFF position. When Key is turned to ON Position and released it will return to OFF Position.
|
Manufacturer |
ABILKEEN |
|
Model Number |
IY19E-04 |
|
Insulation Resistance |
1000MΩ Min |
|
Waterproof Grade |
IP40 |
|
Operating Temperature |
-20°C ~+55°C |
|
Wire Soldering |
Acceptable and with fast shipping |
|
Sample Order |
Available |
|
Country of Origin |
China |
|
Lead Time |
5-7 days |
