IY12E-02 Key Switch 2 Position
IY12E-02 Key Switch 2 Position

Key Switch 2 Position

IY12E-02 Key Switch ON/Off 12mm Micro Barrel Electronic Key Lock Switch 2 Positon with Key 0.5A 250VAC

Mounting Hole

12mm

Position

ON-OFF 2 position

Enclosure Material

Metal

Contact Resistance

50 mΩ max

MOQ

100
Shopping Cart Inquire Now PDF Datasheet

Specification

Features

This key switch is suitable for home appliances.

This 2 position key operated rotary switch has good insulation performance.

Heavy-duty materials that are designed not to wear down or break

This 2 position key operated rotary switch is quality guaranteed, stable and reliable, and has a long service life.



1. This key operated rotary switch is a 2-position rotary switch,

2. Key removable On or Off.

3. Rating power: 0.5A 48VDC

Product Name

Key switch

Model

IY12E-02

Insulation Resistance

1000MΩ Min

Dielectric Intensity

2000VAC

Operating Temperature

-20°C ~+55°C

Wire Soldering

Acceptable and with fast shipping

Sample Order

Available

Place of Origin

Zhejiang, China

Delivery Days

5-7 days

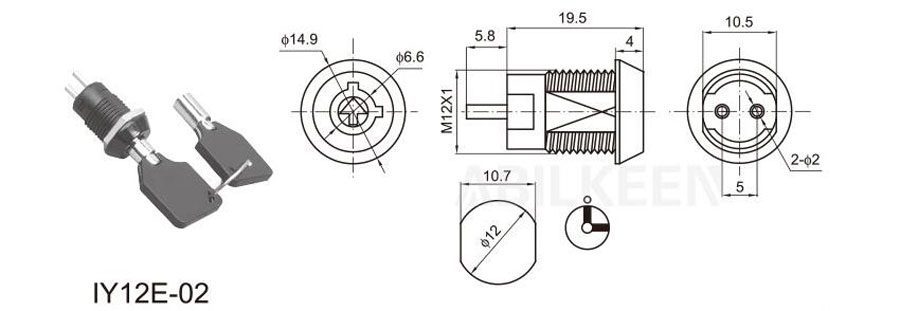

Drawing
