Mounting Hole |
22mm |
|
Actuator Type |
Mushroom head |
|
Terminal type |
3Pin Terminals |
|
Enclosure Material |
Aluminum oxide button, stainless steel housing |
|
Contact Resistance |
50 mΩ max |
|
MOQ |
100 |
Operation Mode: Push Button,Twist
Current Rating: 3 Amps
Operating Voltage: 12 Volts
Contact Type: Normally Open, Normally Closed

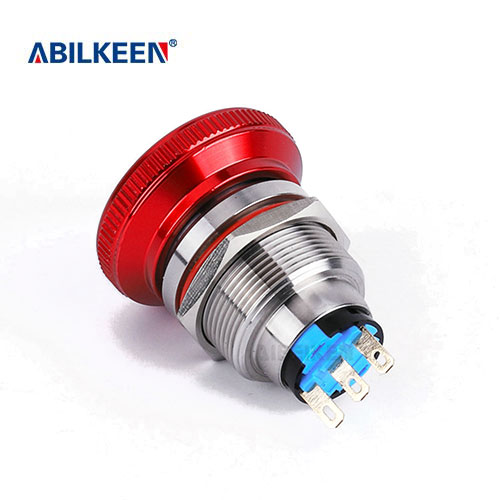

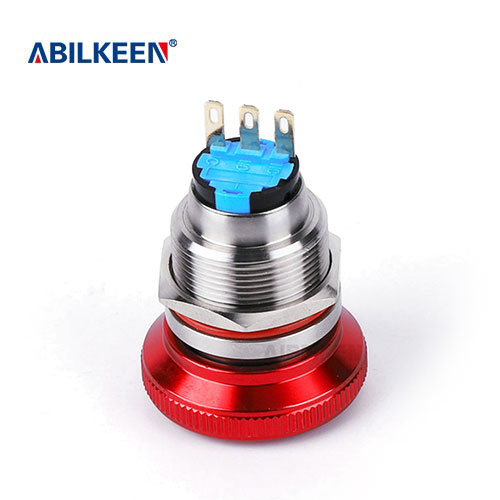

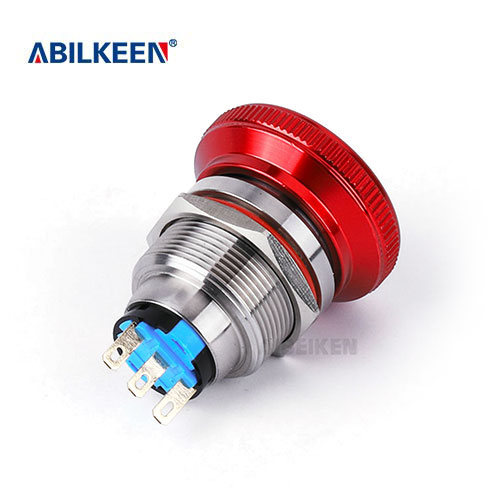

Product Name : Emergency Stop Push Button Switch ;
Contact Type : 1 NC 1 NO ;Terminal Quantity: 3
Function Type :Latching / Maintained
Button Diameter : 28mm / 1.1" ; Mount Hole Diameter : 22mm / 7/8";
Package Content : 1pcs x Push Button Switch
This switch Push to stop and lock, twist to reset. The switches are structured compactly and operated quickly and gently. For emergency stop in industry with the conspicuous red mushroom cap.
|
Product Name |
Emergency stop push button switch |
|
Model |
IB22E-ES11Z/S |
|
Mounting Hole |
22mm |
|
Actuator Type |
Mushroom head |
|
Terminal type |
3Pin Terminals |
|
Enclosure Material |
Aluminum oxide button, stainless steel housing |
|
Delivery Days |
1-7 days |
|
Contact Resistance |
50 mΩ max |
|
Insulation Resistance |
1000MΩ Min |
|
Dielectric Intensity |
2000VAC |
|
Operating Temperature |
-20°C ~+55°C |
|
Accessories |
Nut, Rubber Waterproof O-ring |
|
What You Get |
1* Emergency stop push button switch 22mm, 1NO1NC,With “STOP” Printed |
IP67 Rated
Lockable
Impact Resistant
Corrosion Resistant
