| Mounting Cut Hole | 22mm |
| Operation | Self-reset/Self-locking |
| Structure | 1NO1NC |
| Switch rating | 10A,12-24V AC/DC |
| Protection Degree | IP67 IK10 |
|
MOQ |
100 |
About this item

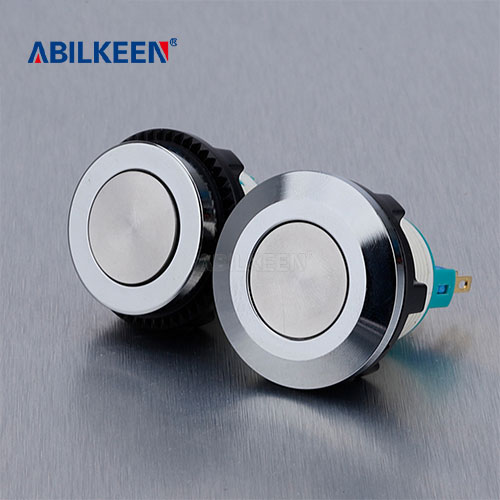

Flat head: IB22B-PA11
Chamfer: IB22B-PB11
Function：
Self-reset/Momentary Switch: Push & Hold-ON; Release-OFF.
Latching Push Button Switch: Push it, ON; Push it again, OFF
Mounting Hole Size:22mm , Voltage: 10A/12-24V
【10 Amp Current Rating】Push Button Switch Current Rating:10 Amps 12-24V; Blue LED lamp voltage: 12V-24V DC/AC.
Suitable for high current operation
【IP Rating and Materials】 IP67 waterproof switch protection can be used in wet or dusty environment. The shell is made of stainless steel 304 material, which is very sturdy and durable.
【Contact】Contact material: Silver Alloy, SPDT ,1 Normally Open 1Normally Close.
【Package】Package include : 1 * 22 mm Push Button Switch 10A , 1 * Waterproof ring, 1*Nut.Waterproof
|
Product Name |
IB22B-P11 22mm momentary switch push button |
|
Model |
IB22B-P11 |
|
Mounting Hole |
22mm |
|
Operation Type |
Self-reset/Self-locking |
|
Switch Combination |
1NO1NC |
|
Head Type |
Flat head/chamfer |
|
Terminal type |
Pin terminal |
|
Enclosure Material |
304 Stainless steel |
|
Delivery Days |
1-7 days |
|
Contact Resistance |
50 mΩ max |
|
Insulation Resistance |
1000MΩ Min |
|
Dielectric Intensity |
2000VAC |
|
Operating Temperature |
-20°C ~+55°C |
|
Wire Soldering |
Acceptable and with fast shipping |
|
Accessories |
Nut, waterproof ring |
|
What You Get |
1 x Push Button Switch,22mm |
LED Illumination
IP68 Rated
Impact Resistant
High Temperature Resistant
