1. Diameter: 19/22mm
2. Stainless steel materials
3. IP68 waterproof
4. detective distance 2-10cm
Specification
1.Mounting Dia: 19mm/22mm
2.Rated Voltage:12-24V DC
3.Rated Current: 1000mA
4.Action Pattern: Momentary
5.Resistances：35mQ
6.Operation Mode: Induction Type
7.Sensing Distance :2-10cm
8.Contact Form: Contactless Electronic Switch
9.Led Color: Red,Green,Blue,White,Yellow
10.Illuminated Display: Single or Bi-Color LED
11.Electrical Life:1 Million Times
12.Operating Temperature:-25 ~+55
13.Waterproof Grade:lP68
Description
No-touch operation
Adjustable sensor range up to 10cm 1A relay,
Selectable LED colors (turns from red to green or green to red) to show if the sensor is activated
Weatherproof (IP68, when properly installed) for outdoor use
IR Proximity Sensors are compact and can be programmed to unlock an electronic door lock when an object (such as a hand) is passed in front of the sensor or trigger an alarm when an object (such as a valuable possession) is removed from the sensing area. This flexibility makes ideal for both anti-theft and access control applications.
About Stepless Dimming type
1.The light (device) is off when connecting to electricity. Click it (time <550ms) once to initiate it with the light on. Click it again to let it be off. Continue to cycle.
2.The initial brightness is 100% of the maximum brightness.
3.Touch and hold it (time > 550ms) to initiate stepless dimming control. The brightness increases when touching and holding, and stays at the level when stop holding. When holding more than 3 seconds, the brightness reaches and stays at maximum level. The brightness decreases when touching and holding again, and stays at the level when stop holding. When holding more than 3 seconds, the brightness reaches and stays at minimum level. Continue to cycle.
4.Click and Holding Touch can be used anytime. There is no interference between these two functions.
|
Product Name |

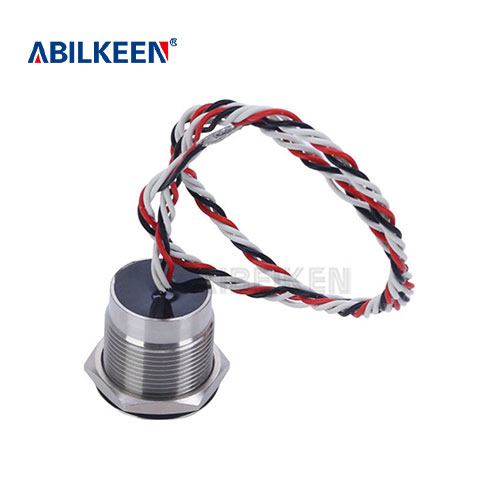

19mm/22mm IP68 Reset Induction Waterproof Ir Sensor Switch |
|
Model |
IB19W-P10F-E/S & IB22W-P10F-E/S |
|
Mounting Hole |
19mm/22mm |
|
Operation Type |
Reset(Momentary) |
|
Switch Combination |
1NO |
|
Terminal type |
4 cables |
|
Illuminated or not |
Yes |
|
Led Voltage |
12V (or 24V) |
|
Led Color |
Blue (Red, Green, Yellow,White available) |
|
Illuminated Type |
Ring Led & customized logo |
|
Enclosure Material |
Stainless steel |
