| Mounting Cut Hole | 10mm |
| Operation | Momentary/Latching |
| Structure | 1NO1NC |
| Switch rating | 2A |
| Protection Degree | IP65 IK09 |
| Terminal type | Pin terminal |
|
MOQ |
100 |
--Long life, LED lighting, waterproof and explosion-proof, flame retardant and temperature resistant.
--Stainless Steel Metal Anti-vandal Switch, Strong structure ensures this Switch can be long lasting.
--Super brightness with stable performance and long life span.
--The colors deviation might differ due to different monitor settings, please kindly understand.

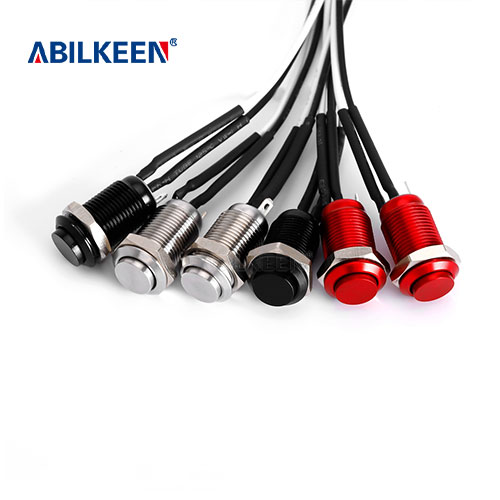

Name: metal waterproof switch
Hole opening: 10MM
Wiring method: soldering foot wiring
Feature: 1NO1NC (1 Normally Open 1 Normally Close)
[Waterproof grade]: IP65 delivery distribution seal
[Function]: Reset/ON-OFF
|
Product Name |
Anti-vandal Switch |
|
Model |
IB10Q |
|
Mounting Hole |
10mm |
|
Operation Type |
Momentary/Latching |
|
Switch Combination |
1NO1NC |
|
Head Type |
Flat/High Round |
|
Terminal type |
3 Pin Terminals |
|
Illuminated or not |
Without LED |
|
Housing Color |
Silver |
|
Enclosure Material |
Brass nickel (stainless steel available) |
|
Delivery Days |
1-7 days |
|
Contact Resistance |
50 mΩ max |
|
Insulation Resistance |
1000MΩ Min |
|
Dielectric Intensity |
2000VAC |
|
Operating Temperature |
-20°C ~+55°C |
|
Wire Soldering |
Acceptable and with fast shipping |
|
Accessories |
Nut, Rubber O-ring |
|
What You Get |
1X Push button switch |
