| Drill hole diameter | Φ22mm (7/8") |
| Switch rating | 5A/250V |
| Switch contacts | 1NO1NC |
| Operation Type | ON OFF Latching/Momentary |
| Head shape | Flat/High Round |
|
MOQ |
100 |
About this item
Latching: Press the button--ON, Press the button again--OFF; Electrical life: 100, 000 times, Mechanical life: 500,000 cycles
Mounting Hole: 22mm(7/8"); LED Light: 5A 12V-24V Halo Ring Blue; LED life: 40, 000 Hours
4 wiring methods: 1NO 1NC; LED light can be always on, or illuminates when the device is working; 5 brass terminals are connected to the pre-wired socket, No need to solder which makes your operation much easier
Protection Degree: IP67Waterproof and dustproof; IK08 Anti-vandal rate. It can be used in wet or dusty environment; But Don’t immerse the button switch in water
Wide Usage: Suitable for car, computer, instrument and meter industry, door bell, home appliance etc.

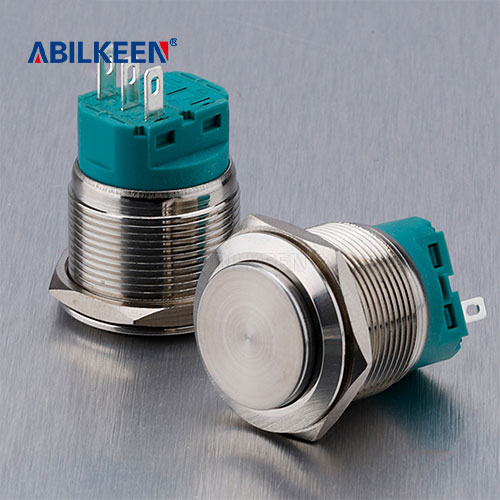

22mm Momentary Metal Push Button Switch
Shell Material: Nickel plated brass/Stainless Steel
Contact Material: Silver Alloy
Operation Type: Momentary/Latching (Self-locking)
Mounting Hole: 22MM(0.87")
Contact Configuration: 1NO 1NC
Protection Degree: IP67,IK08
|
Product Name |
Push Button Switch |
|
Model |
IB22E-P11 |
|
Mounting Hole |
22mm |
|
Operation Type |
Momentary /Latching (Maintain) |
|
Switch Combination |
1NO1NC |
|
Actuator Shape |
Flat Round Head |
|
Terminal type |
3 Pin Terminals |
|
Illuminated or not |
Yes |
|
Led Voltage |
12V (or 3V/5V/24V/110V/220V/others) |
|
Led Color |
NO |
|
Illuminated Type |
NO Led |
|
Enclosure Material |
Stainless Steel |
|
Delivery Days |
1-7 days |
|
Contact Resistance |
50 mΩ max |
|
Insulation Resistance |
1000MΩ Min |
|
Dielectric Intensity |
2000VAC |
|
Operating Temperature |
-20°C ~+55°C |
|
Customized symbol,colored housing or Connector |
Acceptable and with fast shipping |
|
Accessories |
Nut, Rubber Waterproof O-ring, |
|
Wiring Harness |
item No.: IB22E Harness |
|
What You Get |
1X 22mm, Push button switch Without LED |
Waterproof (lP67)
Dustproof
High Temperature Resistant
Impact Resistant
