| Mounting Cut Hole | 19mm |
| Operation | Momentary/Latching |
| Structure | 1NO1NC |
| Switch rating | 5A/250VAC, 5A/30VDC |
| LED rating | 15mA, AC/DC 12V |
About this item
Latching switch: Push it, ON; Push it again, OFF
Metal shell,100% brand new and high quality,mechanical life for 500,000 cycles
The switch and LED are separated, LED can be on all the time or only on when switch is on,depending on how you wire it
Can be use as a switch for various additional electric equipment, inside & outside the car.(Such as critical lights, chassis lamp, fog lamps, dome light)
There is a wiring instruction in the packaging. You can get the wiring diagram in it, that can help you to install
What's the Pushbutton Switch

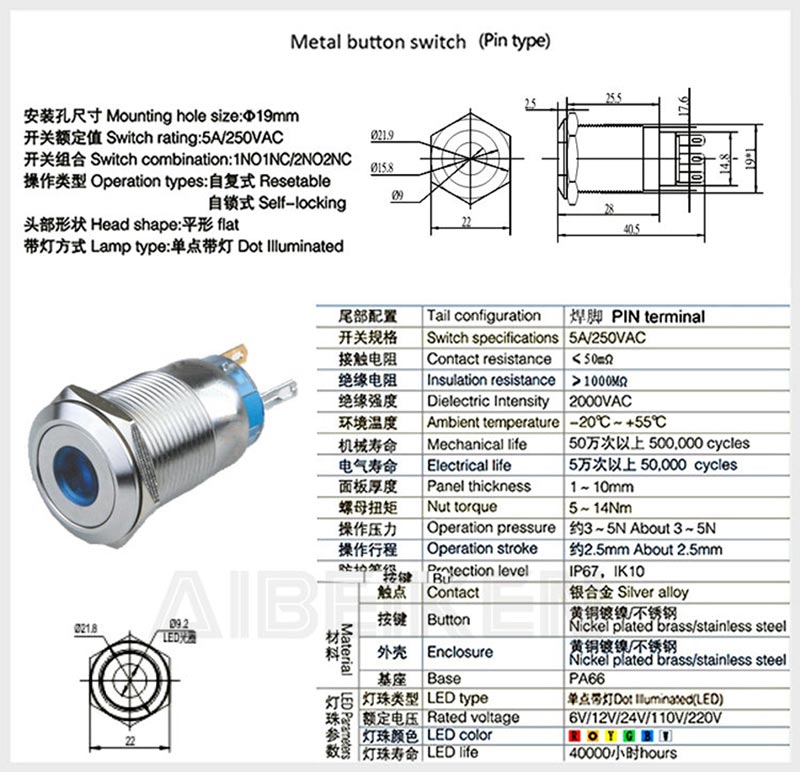

This is a perfect choice if you are in need of a rugged push button! These metal push buttons are a very tough, small, panel-mount latching switch with an illuminated blue LED. It is a SPDT with 19mm threading and 1mm pitch. This button is perfect for basic On/Off functions. These latched buttons are rated up to 5A and 250VAC while the LED is rated for 5-12V.
What's Latching Switch
Latching switch, push it down, it stays down and latched in the closed position, press the button again and it releases and unlatches
What's Latching Switch Used for
Most often latching switches are used for various additional electric equipment, inside & outside the car(Such as critical lights, chassis lamp, fog lamps, dome light)
What's Note
-These switches come with a rubber O-ring which makes them splash resistant but they can NOT be submerged underwater
-The project you are going to be used for, don't let current go above 5 amps. Or the switch will get warm and to be burned out.
|
Product Name |
19mm Push Button Switch with Power symbol |
|
Model |
IB19S-P11-E-power |
|
Mounting Hole |
19mm |
|
Operation Type |
Momentary/Latching |
|
Switch Combination |
1NO1NC |
|
Head Type |
Flat /High round head |
|
Terminal type |
5 Pin Terminals |
|
Enclosure Material |
Stainless steel/Brass/Aluminum |
|
Led Voltage |
15mA, AC/DC 12V |
|
Switch Rating |
5A/250VAC, 5A/30VDC |
|
Protection Level |
IP65, IK10 |
|
Led Color |
Blue,Red, Green, Yellow,White,Bi-color |
|
LED Shape |
Power symbol |
|
Wire Soldering |
Acceptable and with fast shipping |
|
Button type |
Flush-button |
|
Mounting Type |
Panel Mount |
