| Head diameter | 7/8" (22mm) |
| Mounting hole size | 3/4" (19mm) |
| Switch combination | 1NO normally open |
| Operation type | Momentary/Latching |
| Switch rating | 5A/250VAC |
Product description
Mounting Hole Size : Φ19mm
LED voltage: 12V-24V 110V-220V; LED and Power symbol Light
Shell Material: Nickel Plated Brass / Stainless Steel (waterproof and dustproof design)
Head shape: Flat round
Led Color: Blue, Red, Orange, Yellow, White, Green
Protection level: IP65, IK08
Self-locking Switch , Press the button switch work ; Press the button again ,switch stop work .
Latching Push Button Switch can be applied to car motorcycle modification ,electric equipment ,appliance,machine ,home Lamps and so on
This switch can be used for circuit control in electromagnetic starter, contactor, relay and other electric circuits.
Household Appliance Control
It is also a good choice to use it as a replacement switch of household Appliances.
Such as table lamp switch, PC switch, Audio switch.
|

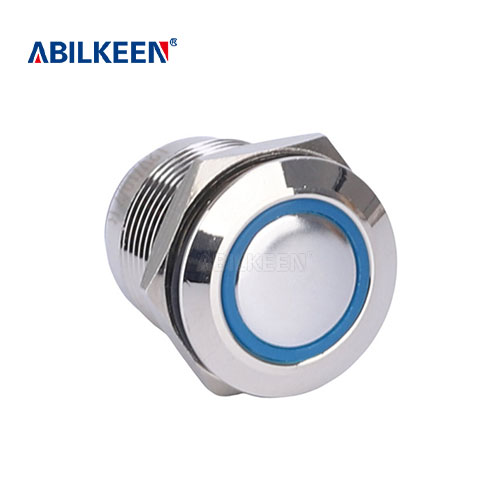

Product Name |
Push Button Switch |
|
Model |
IB19E-P10Z-E |
|
Mounting Hole |
19mm |
|
Operation Type |
ON OFF Latching (Maintain) |
|
Switch Combination |
1NO |
|
Actuator Shape |
Flat Round Head |
|
Terminal type |
4 Pin Terminals |
|
Illuminated or not |
Yes |
|
Led Voltage |
12V (or 3V/5V/24V/110V/220V/others) |
|
Led Color |
Blue (Red, Green, Yellow,White,Orange available) |
|
Illuminated Type |
Ring Led |
|
Enclosure Material |
Brass nickel/Stainless Steel |
|
Delivery Days |
1-7 days |
|
Contact Resistance |
50 mΩ max |
|
Insulation Resistance |
1000MΩ Min |
|
Dielectric Intensity |
2000VAC |
|
Operating Temperature |
-20°C ~+55°C |
|
Customized symbol,colored housing or Connector |
Acceptable and with fast shipping |
|
Accessories |
Nut, Rubber Waterproof O-ring, |
|
What You Get |
1X 19mm LED Push button switch |
