1. Switch can be used as a switch for various additional electric equipment, inside and outside the car. AC or DC enviroment.
2. Stainless steel, oxidized black material available
3. 16mm size,5A/250AC,1NO1NC,
4. There is a clasp on the tail plug, make it easy to plug and unplug.
5. Push button switch with illuminated design, you can decide the illumination mode by choosing different wiring methods, such as LED ON when Switch ON; or LED always ON
|
MOQ |
100 |

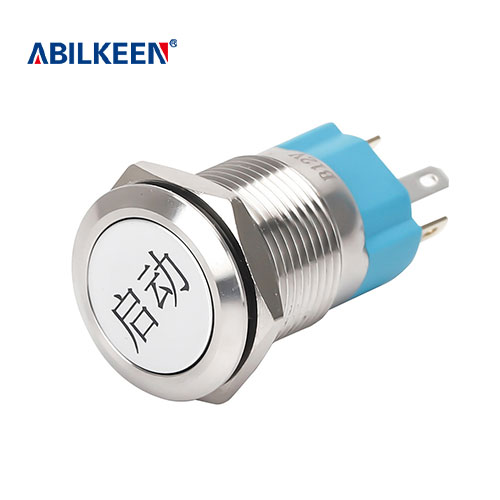

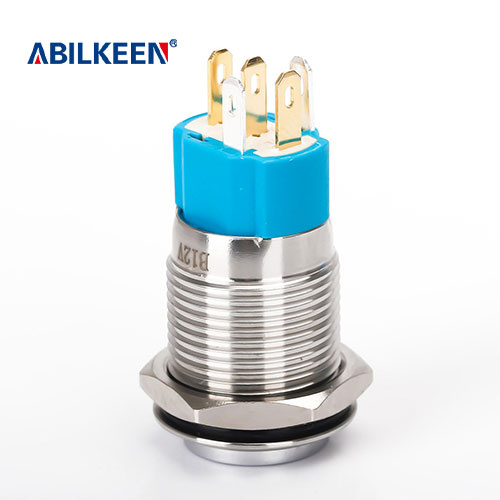

IB16L1-G11F-ZL High quality 16mm Stainless Steel 1NO1NC 5pins momentary/latching Custom car horn symbol light push button switch
Product description
Product name：car horn symbol light switch
Model Number：IB16L1-G11F-ZL
Mounting Hole Size： 16mm
Switch Combination：1NO1NC
Operation Type：Momentary/Latching
Operation Mode：ON-OFF
Current Rating：2-3A
Operating Voltage：12V/24V/36V/48V/110V/220V
Material：stainless steel
Head Type：Head Head
International Protection Rating：IP67
Terminal type：5PIN terminals
Lamp Color ：Green/Red/Yellow/White/Blue/ custom
|
Product name |
car horn symbol light switch |
|
Model Number |
IB16L1-G11F-ZL |
|
Mounting Hole Size |
16mm |
|
Switch Combination |
1NO1NC |
|
Operation Type |
Momentary/Latching |
|
Operation Mode |
ON-OFF |
|
Current Rating |
2-3A |
|
Operating Voltage |
12V/24V/36V/48V/110V/220V |
|
Material |
stainless steel |
|
Head Type |
Head Head |
|
International Protection Rating |
IP67 |
|
Terminal type |
5PIN terminals |
|
Lamp Color |
Green/Red/Yellow/White/Blue/ custom |
