Item Name: Push Button Switch; Type: Latching/Momentary; Contact Type: (1NO1NC)
(Rated) Voltage & Current: 250V 3A; Light Color: Blue Red Green Yellow White
Mounting Hole Diameter: 16mm / 0.63"; Head Shape: Flat Head
Widely Application: Great for Box Mod, Car Boat Vehicle push button switch12V , Kill Switch ,Horn Button Switch, PC Power Switch or any circuit controls, electronic DIY equipment
|
MOQ |
100 |
Product description
Momentary type, 1NO1NC contact, 7 terminals.
This metal push button switch is suitable for 16mm diameter mounting hole.
Used widely: Great for Power Button Switch, Led Switch, DIY projects or any circuit controls.
Action Type: Latching / Momentary Type
Head Shape: Flat /High Head
Contact: (1NO1NC)
Switch Rating: AC 250V 3A
Switch Color: Silver
Lamp Voltage: 12/24/110/220V
Thread Diameter: 16mm/0.63in
Material: Black Aluminum oxidation,Copper Nickel Plating or stainless steel
Customer Support
If you have any questions, feel free to contact us by E-mail any time. We get professional customer service staff and technician to help you
16mm Momentary Push Button Switch: Push & Hold, ON; Release, OFF,
Contact Configuration: 1NO1NC(SPDT)/2NO2NC(DPDT).The default is 1NONC. If 2NO2NC is required, please contact me freely.
Maximum Voltage: 250VAC/DC, 3A. Contact: Silver plated,contact reliability superiority.
After sales service: if you have any question, please be free to contact us. We offer free replacement or full refund.
|

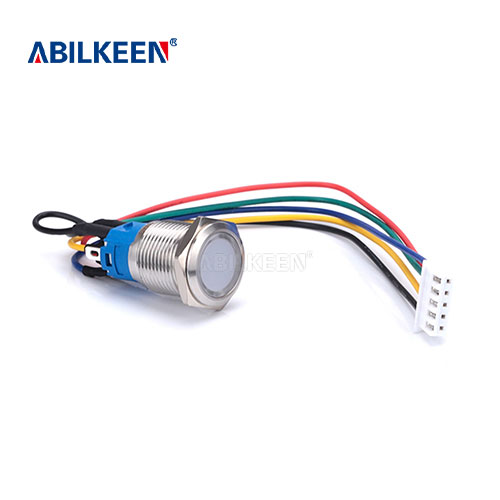

Product Name |
Full Button Illuminated Push Button Switch |
|
Model |
IB16E-P11-C |
|
Mounting Hole |
16mm |
|
Operation Type |
Momentary /Latching (Maintain) |
|
Switch Combination |
1NO1NC |
|
Actuator Shape |
Flat Round Head |
|
Terminal type |
5 Pin Terminals |
|
Illuminated or not |
Yes |
|
Led Voltage |
12V (or 3V/5V/24V/110V/220V/others) |
|
Led Color |
Blue (Red, Green, Yellow,White,Orange available) |
|
Illuminated Type |
Ring Led |
|
Enclosure Material |
Stainless Steel |
|
Delivery Days |
1-7 days |
|
Contact Resistance |
50 mΩ max |
|
Insulation Resistance |
1000MΩ Min |
|
Dielectric Intensity |
2000VAC |
|
Operating Temperature |
-20°C ~+55°C |
|
Customized symbol,colored housing or Connector |
Acceptable and with fast shipping |
|
Accessories |
Nut, Rubber Waterproof O-ring, |
|
Wiring Harness |
item No.: IB16E Harness |
|
What You Get |
1X 16mm, LED Push button switch |
Note: If you need Customized LED, please inform us by mail:
What Led Color? 2. What Led Voltage?
