| Operation Mode | ON-OFF |
| Current Rating | 2 Amps |
| Operating Voltage | 12 Volts |
| Contact Type | Normally Open |
| Connector Type | Plug In |
About this item

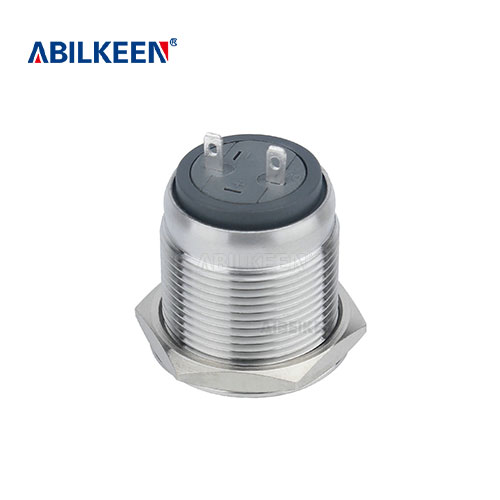

Specifications: 16mm Latching push button switch without Led
How to use: press to turn on; press again to turn off. Contact configuration: 1NO.
Mounting hole size: 5/8" 16mm, please check the size carefully before purchasing.
This switch can be used for: cars, ships, trucks, homes, coffee machines, industrial equipment, medical equipment, etc.
Waterproof: As the product has IP65 Waterproof, it is very suitable for use in marine applications such as ships.
Latching Push Button Switch
IP65 Waterproof
Application: This switch can be used in ships, cars, trucks, homes, coffee machines, industrial equipment, medical equipment
Rated 12V DC 2A, usually used in conjunction with wiring harness, can effectively control the LED lights of various vehicles, such as LED light bars, LED work lights, fog lights, driving lights, headlights, tail lights, off-road lights, etc
Car modification
Use this switch to replace the horn switch, light switch or other switches in the car/truck. The design of this product not only brings you convenience, but also ensures the service life.
Easy to use
Just press it once, and your switch will be turned on. There will be no button bounce on this self-locking switch; press it again to turn off the switch.
|
Product Name |
Push Button Switch |
|
Model |
IB16E-P10Z |
|
Mounting Hole |
16mm |
|
Operation Type |
ON OFF Latching (Maintain) |
|
Switch Combination |
1NO |
|
Actuator Shape |
Flat/High Round Head |
|
Terminal type |
2 Pin Terminals |
|
Illuminated or not |
Non-illuminated |
|
Led Voltage |
12V (or 3V/5V/24V/110V/220V/others) |
|
Led Color |
NO |
|
Illuminated Type |
NO Led |
|
Enclosure Material |
Brass nickel/Stainless Steel |
|
Delivery Days |
1-7 days |
|
Contact Resistance |
50 mΩ max |
|
Insulation Resistance |
1000MΩ Min |
|
Dielectric Intensity |
2000VAC |
|
Operating Temperature |
-20°C ~+55°C |
|
Customized symbol,colored housing or Connector |
Acceptable and with fast shipping |
|
Accessories |
Nut, Rubber Waterproof O-ring, |
|
What You Get |
1X 16mm Latching Push button switch |
