| Mounting Cut Hole | 12mm |
| Operation | Momentary/Latching |
| Structure | 1NO |
| LED Pattern | Ring Indicator+Power Mark Logo led |
| Protection Degree | IP65 |
About this item
[Waterproof & Anti-dust]: This LED on/off anti-vandal switch adopts rubber ring and hexagonal nut fixed, which is anti dust and waterproof and great for outdoors use. IP rating: IP65, IK08; screw thread width: 12mm / 0.47"; dimension: 1.3 x 2.2cm / 0.51" x 0.87".As the product has IP65 Waterproof, it is very suitable for use in marine applications such as ships.
[Exquisite Workmanship]: This LED anti-vandal switch adopts professional manufacturing process with high-grade appearance and nice touch feeling, and it uses copper plating silver pin terminals for good conductive properties, which can provide you with a superior using effect. Switch rating: 3A 12V; LED voltage: red LED - 2V; green, blue, white LED - 3V.
[Premium Quality]: This LED button power switch is made of industrial strength copper and components, which is sturdy and in use. And its metal button head can withstand longstanding press, pretty in using, which has reliable quality and long service life.
[Guarantee]: Our product have 180 days , if you have any question about this product, please feel to us, we will try our best to help you solve your problem.
[Specifications]Rated Voltage & Current:12V DC 3A;Positions:2 (ON / OFF);Pin Quantity:4;Contact Type:SPST;Protection Degree: IP65;Mounting Type:Panel Mount;Mounting Hole Diameter:12mm /0.47inch;Wire Length:120mm/4.7inch;LED Color:Red/Yellow/Blue/Green/White.
[Momentary Switch]This switch is a momentary switch,2Pin SPST momentary ON OFF switch, is momentary Automatic Reset action, Resetting returns to off when released.
[Wide Application]This switch can be used for: cars, ships, vehicles, automobiles, trucks, homes, coffee machines, industrial equipment, medical equipment.
|

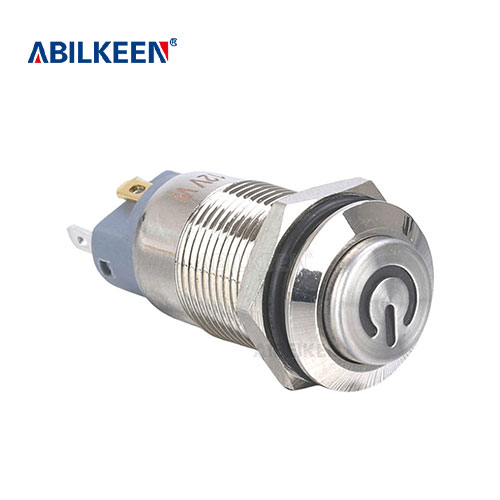

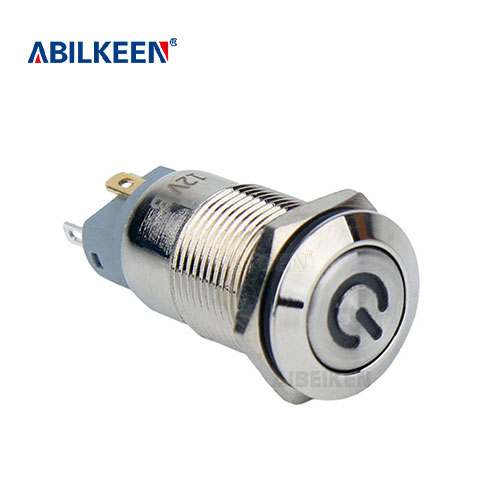

Product Name |
12mm Power Anti-vandal Switch |
|
Model |
IB12S-P10-E-power |
|
Mounting Hole |
12mm |
|
Operation Type |
Momentary/Latching |
|
Switch Combination |
1NO |
|
Head Type |
Flat /High round head |
|
Terminal type |
4 Pin Terminals |
|
Enclosure Material |
Stainless steel/Brass/Aluminum |
|
LED color |
R/G/B/Y/W/O |
|
Operation Temperature |
-20℃ to +55℃ |
|
Protection Level |
IP65, IK10 |
|
Rated Voltage & Current |
12V DC 3A |
|
Operating Temperature |
-20°C ~+55°C |
|
Wire Soldering |
Acceptable and with fast shipping |
|
Accessories |
Nut |
|
Operation Mode |
ON-OFF |
