| Mounting Cut Hole | 12mm |
| Operation | Momentary |
| Structure | 1NO |
| Switch rating | 2A |
| Protection Degree | IP65 IK08 |
| Terminal type | Pin terminal |
|
MOQ |
100 |
Product information
Momentary Type: This push button momentary type is a push button, push and Hold, ON; Release, OFF. Switch Type: Four terminal breakpoints slow moving contact; Contact Configuration: 1NO; Switch: 2A/36VDC; The Front Shape: Flat/High Round; Mounting Hole Size: 12mm / 0.47
Waterproof & Durable: Made of premium stainless steel and alloy material, this momentary push button is waterproof & sturdy, not easy to aging and abrasion resistant, to ensure maximum strength and durability for long lasting usage
Easy Installation: Simplify installation steps, no modification, cutting, or drilling required. Easy to install and disassemble, waterproof push button switch can be cleaned and maintained conveniently. Stable and reliable performance
Wide Application: The waterproof momentary push button is widely applied for circuit control in electromagnetic starter, contactor, relay and other electric circuits. Perfect match to your machine.
Product description

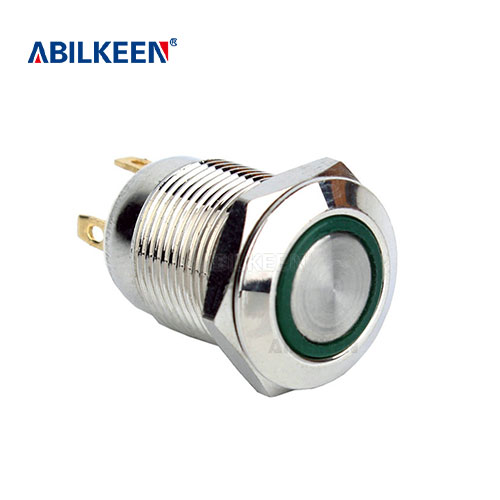

Item Name : Push Button Switch
Mounting Thread Diameter : 12mm
Enclosure Material : Nickel plate brass/Stainless steel/Aluminum
Switch Description: Momentary Switch (Press ON, Release OFF)
Shape: Flat Round
Rated Value: 2A / 36VDC
Terminal Type: PIN Terminal
Contact Configuration: 1NO (Normally Open)
Protection Degree: IP65 (Waterproof), IK08 (Anti-Collision)
Waterproof Protection Can be Used in Wet or Dusty Environment
Fits: This Switch Can Be Used For Circuit Control In Electromagnetic Starter, Contactor, Relay and Other Electric Circuits. Also Use in Assembly Work-shop, Public and Entertainment Locations, Electrical Control Panels
Easy to Install, Can be Used in Various Additional Electric Equipment, Reply, Inside or Outside the Car or Any Circuit Controls.
|
Product Name |
Push Button Switch |
|
Model |
IB12C-10F-E |
|
Mounting Hole |
12mm |
|
Operation Type |
Momentary (Reset) |
|
Switch Combination |
1NO |
|
Head Type |
Flat /High round head |
|
Terminal type |
4 Pin Terminals |
|
Illuminated or not |
Yes |
|
Led Voltage |
12V (or 3V/5V/12V/24V/110V/220V/others) |
|
Led Color |
Blue (Or Red,green,yellow,orange,white) |
|
Illuminated Type |
Ring Led illuminated |
|
Enclosure Material |
Nickel plate brass/Stainless steel/Aluminum |
|
Delivery Days |
1-7 days |
|
Contact Resistance |
50 mΩ max |
|
Insulation Resistance |
1000MΩ Min |
|
Dielectric Intensity |
2000VAC |
|
Operating Temperature |
-20°C ~+55°C |
|
Customized symbol,colored housing |
Acceptable and with fast shipping |
|
Accessories |
Nut, Rubber O-ring |
|
What You Get |
1X Push button switch: 12mm, 12V Blue LED, Momentary, |
>
